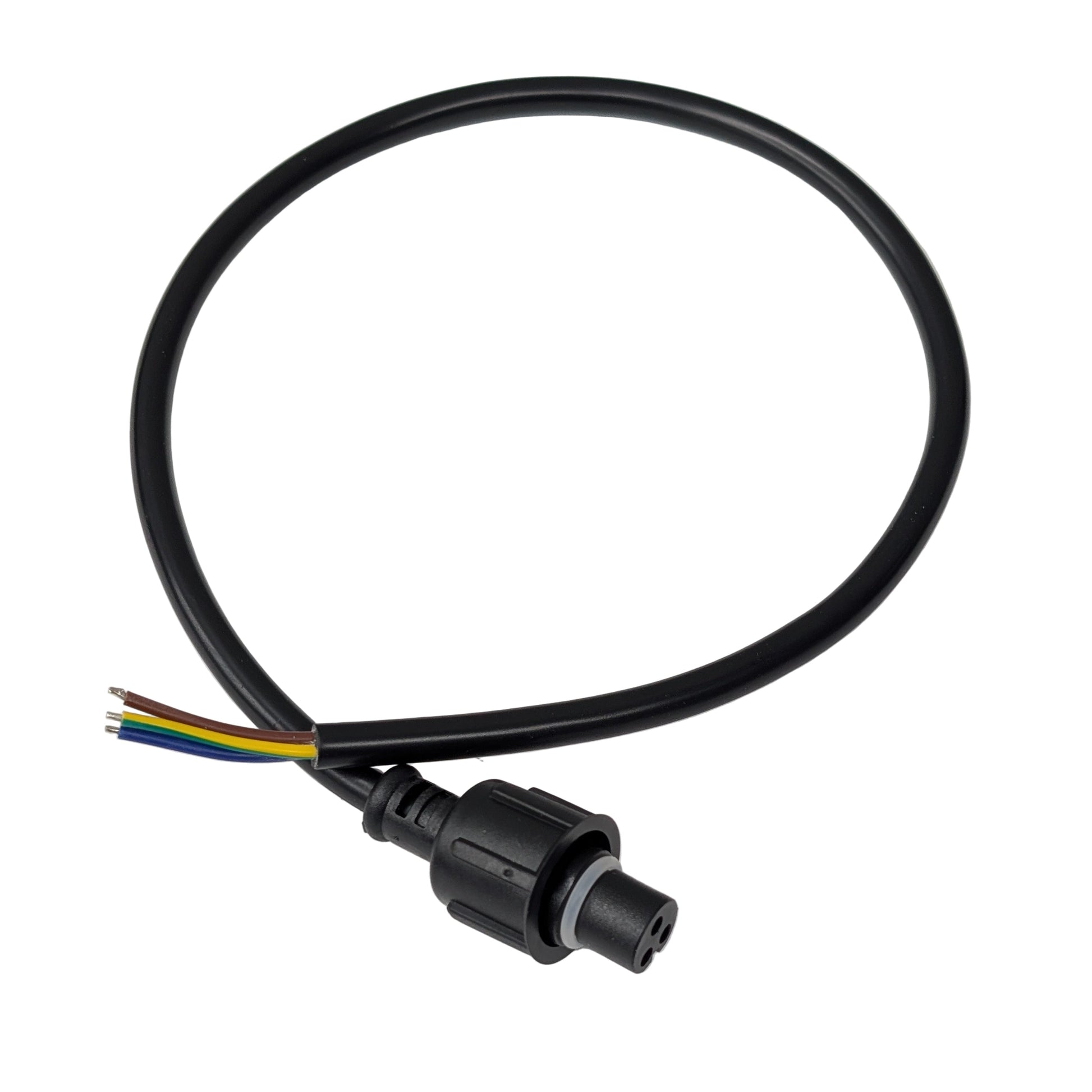

The xConnect 3-Pin Female Pigtail is a 20-inch (50 cm) round-cable pigtail designed for pixel controller outputs, receiver builds, repairs, and other addressable RGB lighting projects. It uses 18 AWG conductors and a silicone sealing ring for a secure, weather-resistant connection when properly mated with a compatible xConnect connector.
The opposite end is unterminated for direct wiring to a controller, receiver board, terminal block, or other compatible device.
xConnect 3-pin female connector
50 cm / 20 in cable length
18 AWG conductors
Round outer cable jacket
Silicone sealing ring for weather-resistant mating
Ideal for pixel controller outputs, remote receivers, repairs, and DIY builds
Product Overview
This pigtail provides a simple way to add or replace an xConnect output connection on a pixel controller or receiver. The 20-inch cable length provides enough reach for most enclosure layouts while keeping internal wiring manageable.
The round cable jacket also works well with multi-hole cable glands commonly used in weather-resistant pixel-controller enclosures.
Key Features
Standard xConnect compatibility for common 3-wire addressable pixel systems
18 AWG wiring for power, ground, and data conductors
50 cm / 20 in length for flexible enclosure routing
Silicone sealing ring helps protect the connector interface from moisture when properly connected
Unterminated wire end for direct connection to controller boards, terminals, or custom wiring
Suitable for new builds or replacing damaged output pigtails
Wire Color Reference
Brown
Positive / V+
Blue
Negative / Ground
Yellow/Green
Data
Important: Wire colors can vary between manufacturers and pixel products. Always verify polarity and pinout before connecting power.
Technical Specifications
Connector Standard
xConnect
Connector Type
3-pin female pigtail
Cable Length
50 cm / approximately 20 in
Wire Gauge
18 AWG
Conductors
3 - positive, negative, and data
Cable Style
Round jacket
Seal
Silicone sealing ring
Opposite End
Unterminated / bare wire
Typical Applications
Pixel controller outputs
Remote receiver boxes
Replacement controller pigtails
DIY pixel-controller builds
Custom enclosure wiring
Addressable RGB lighting projects
Installation Notes
Verify connector pinout and polarity before applying power.
Use appropriate strain relief or cable glands where the pigtail passes through an enclosure wall.
The weather-resistant seal depends on a fully seated and properly tightened compatible xConnect connection.
Protect unused connectors with a compatible end cap when exposed outdoors.
Recommended Accessories
Cable ID Clips - Label controller outputs for easier setup and troubleshooting.
