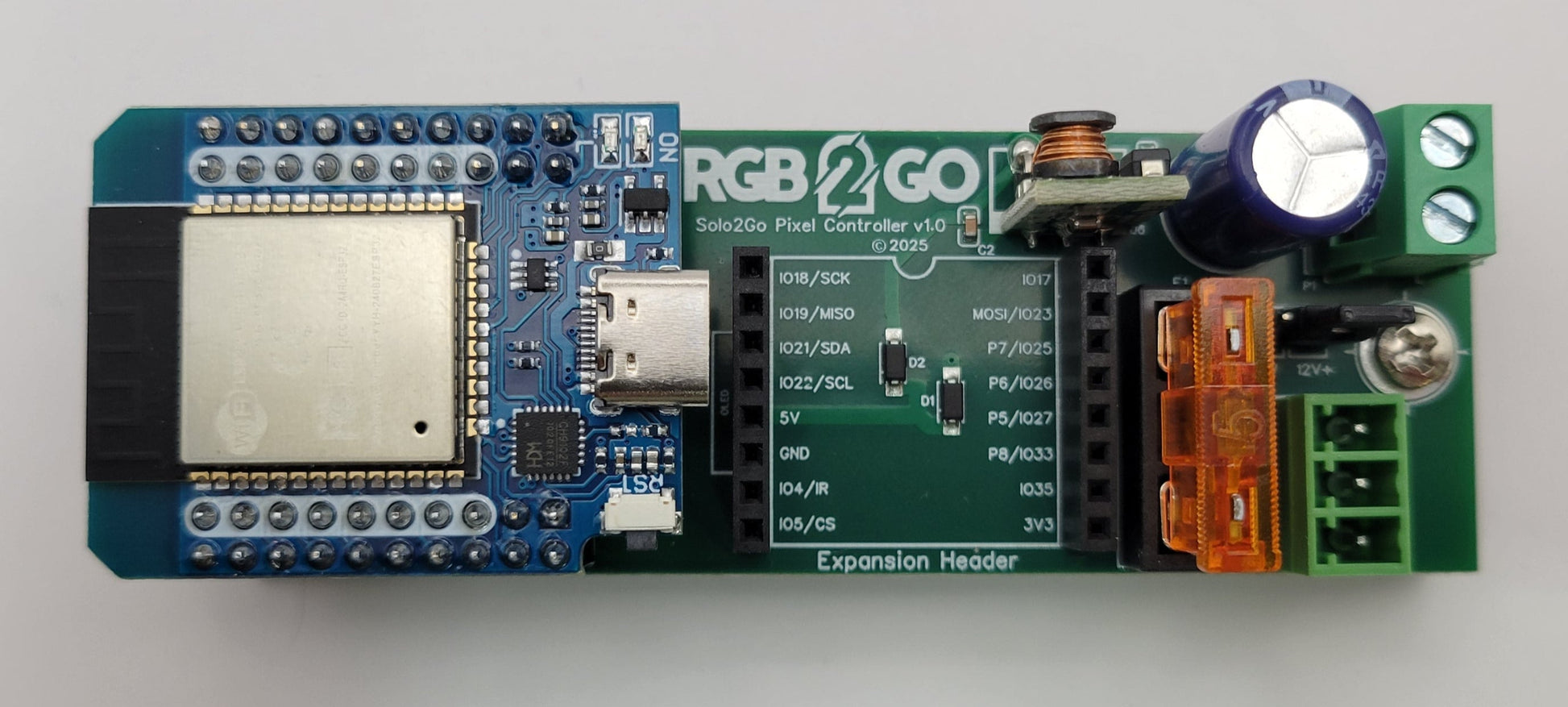

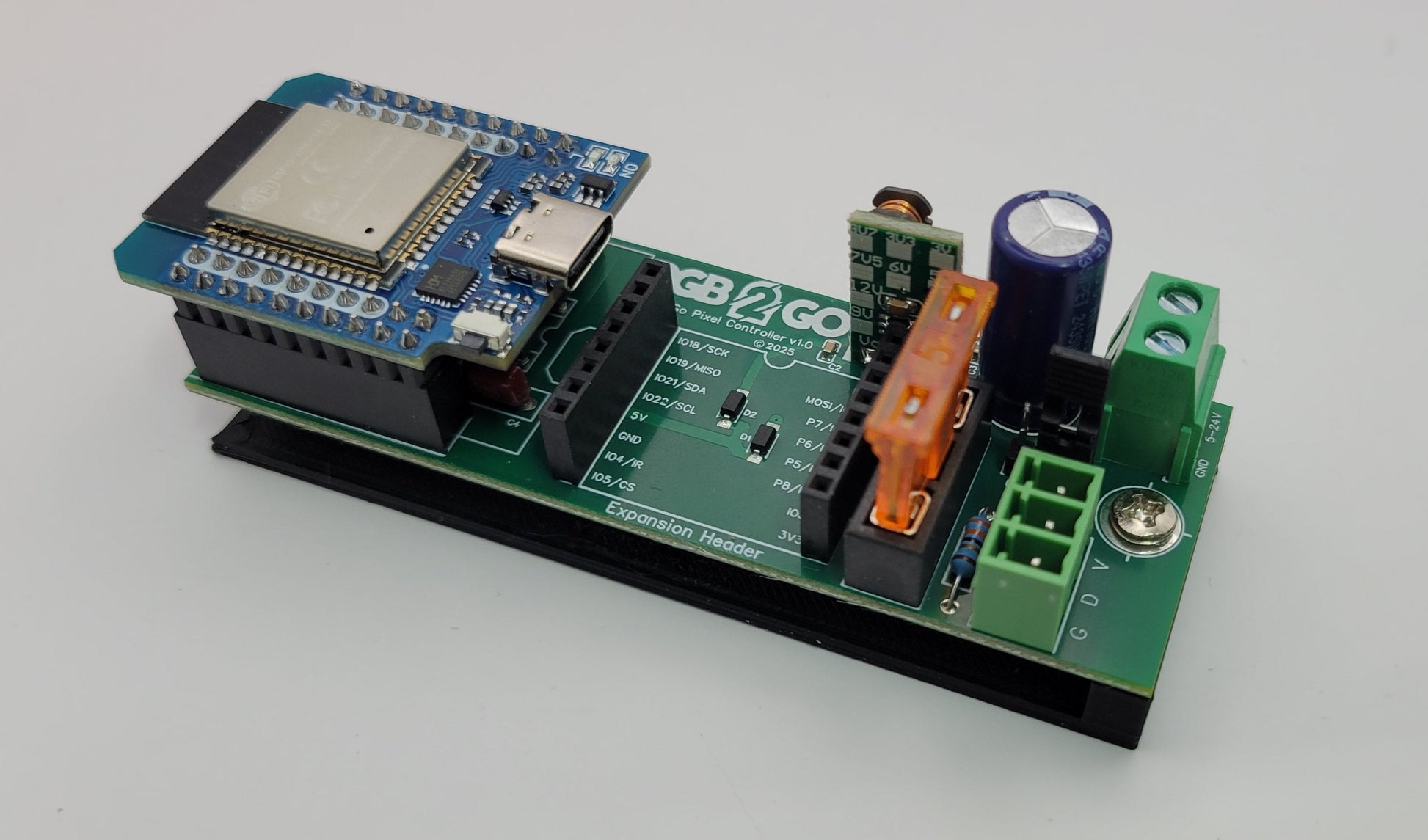

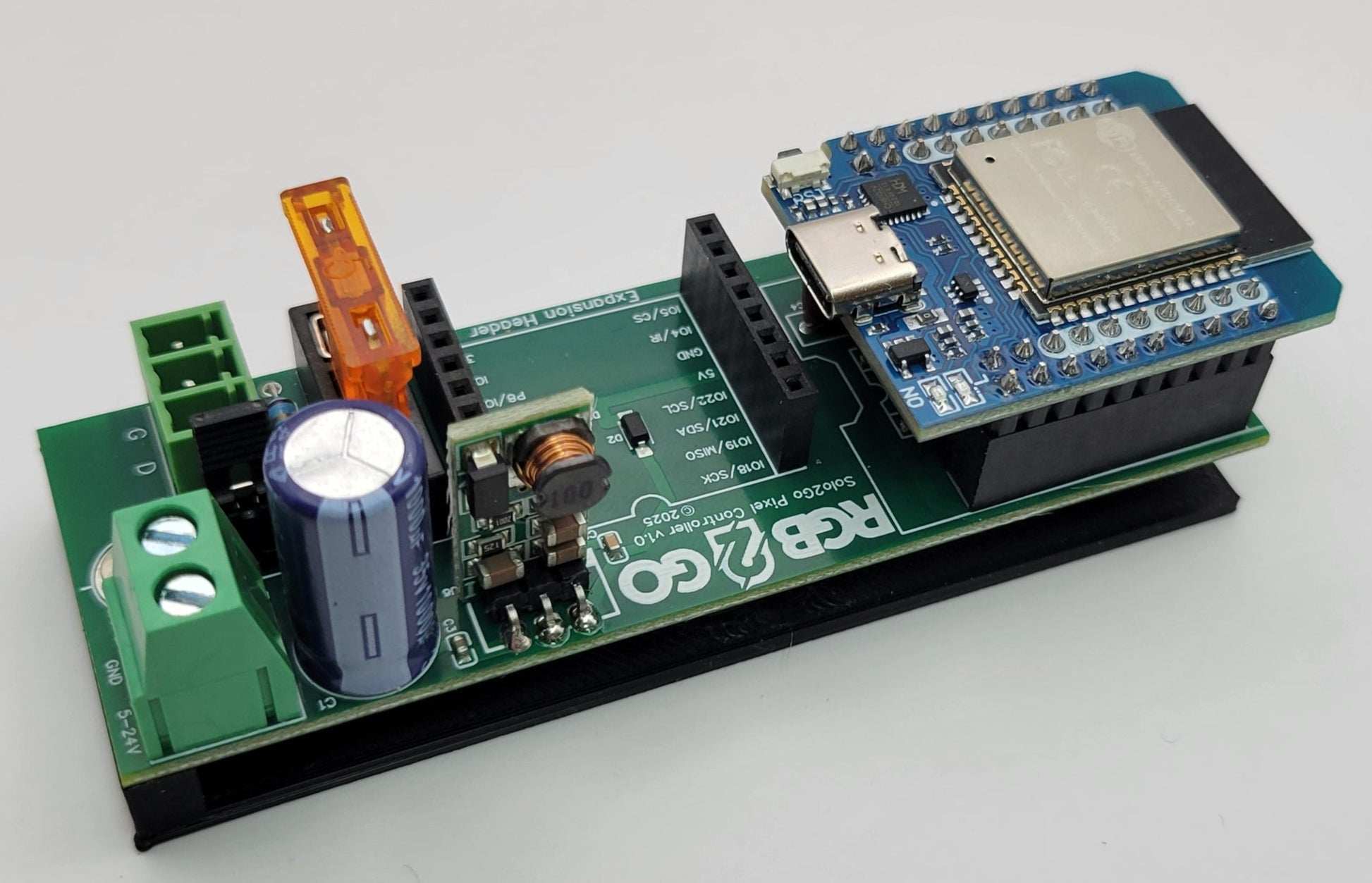

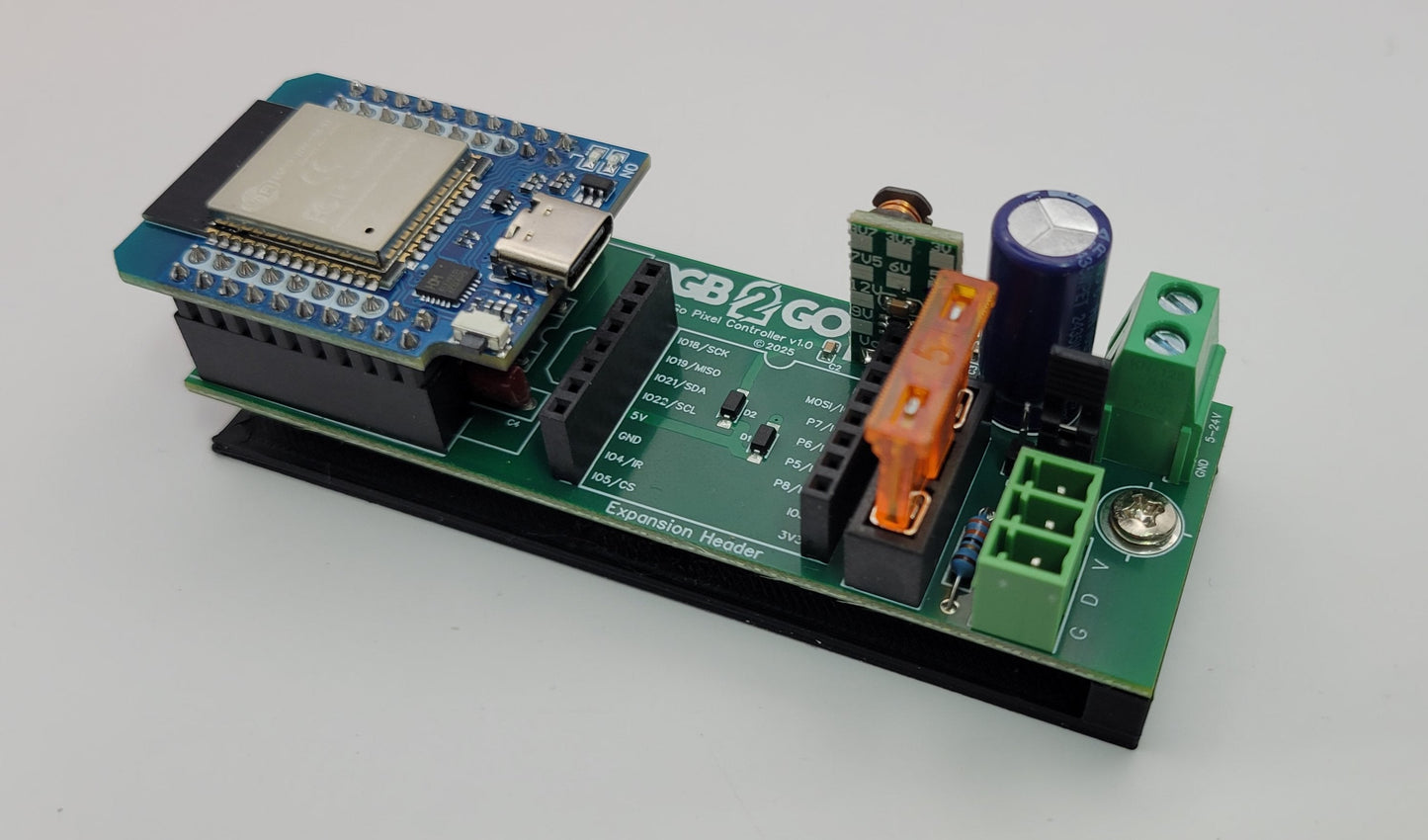

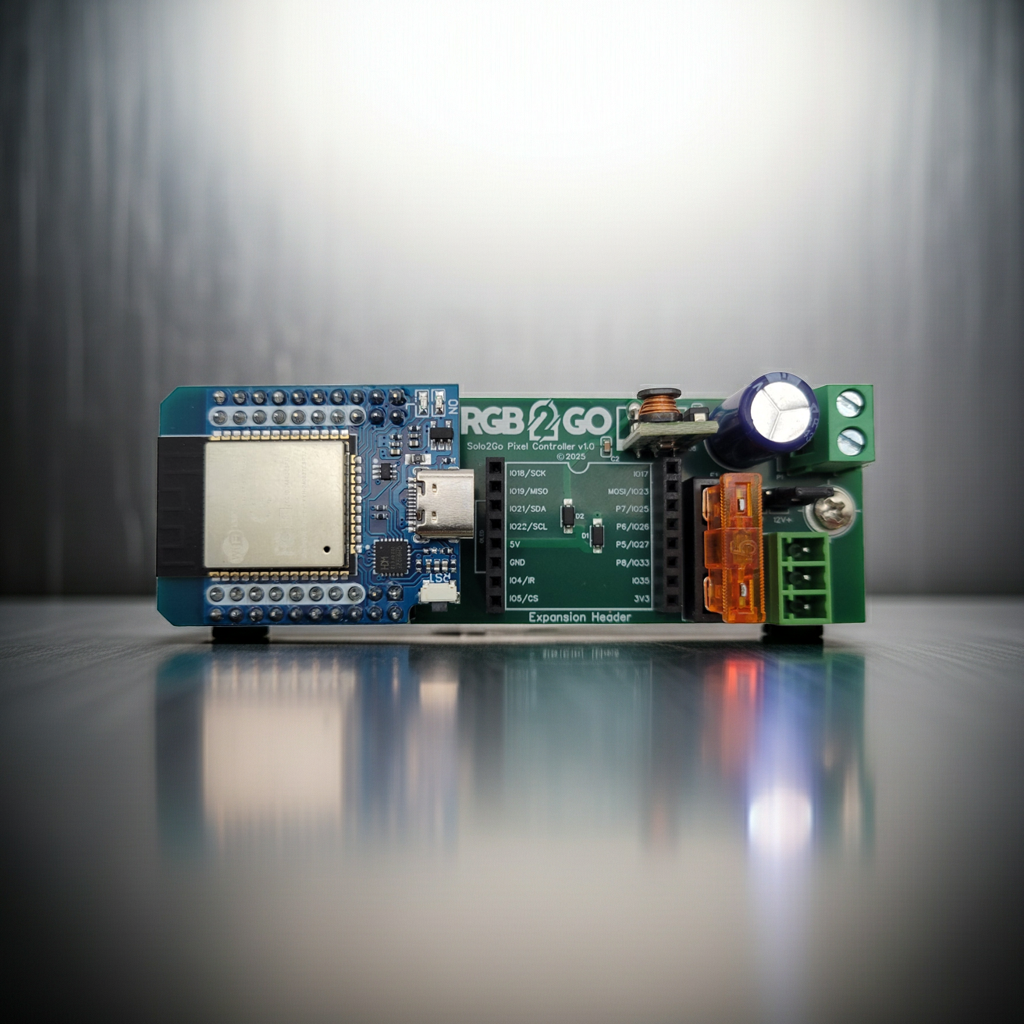

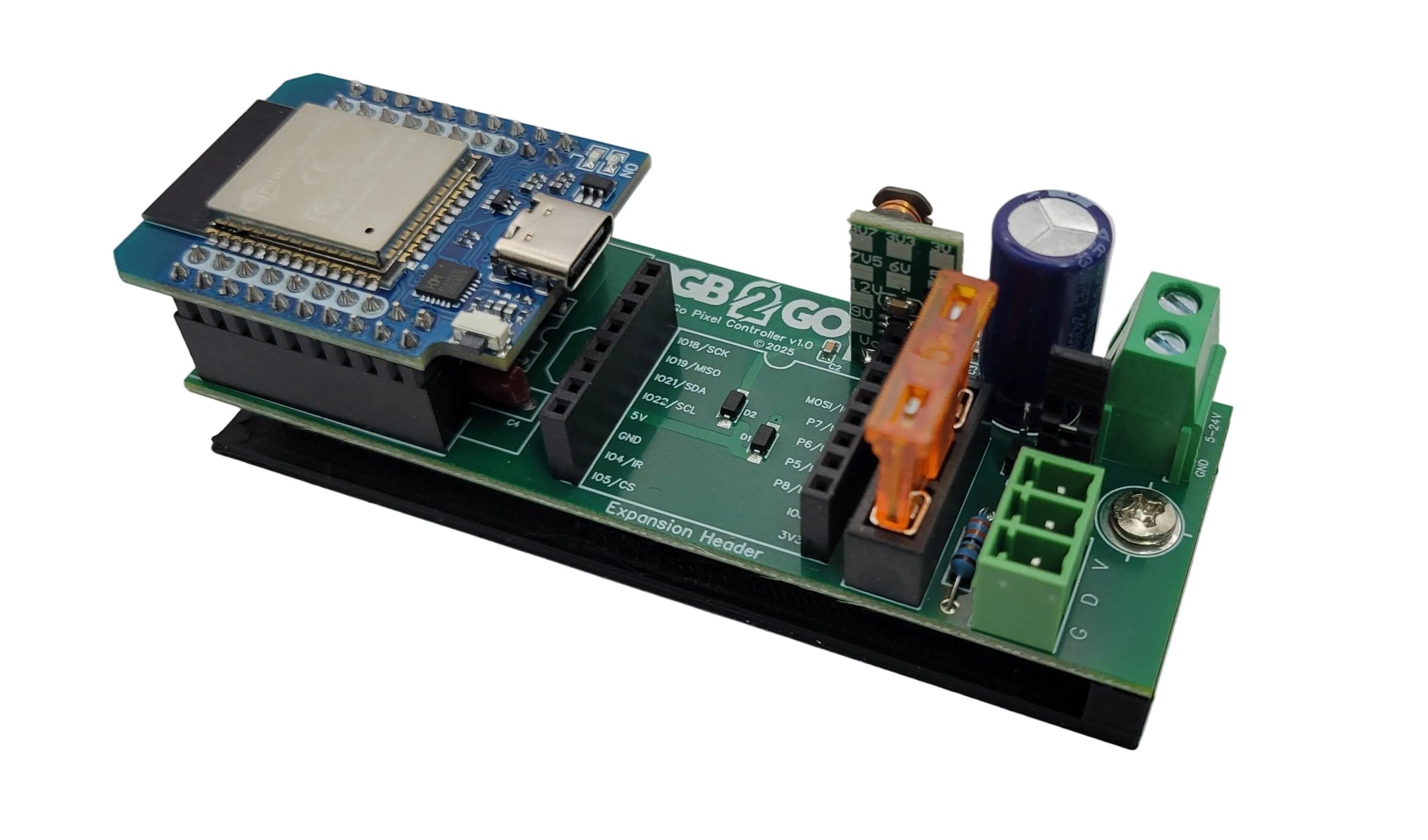

Solo2Go 1-Port Wi-Fi Pixel Controller

$31.99 USD

Sale Sold out

1-Port Pixel Controller (upgradable to 5-Port w/ the Differential Module)
Revision 1.0
Wi-Fi support (2.4GHz only)
ESP32 Based
Expansion header (Ethernet, Differential, SD Card, 4-Button, IR Receiver and Audio-Reactive Modules available, sold separately)
WLED 0.15.0 pre-installed
XLights Compatible
5V Data Signal, 33 ohms
Modular and repairable
Supports 24v, 12v & 5v pixels and strip (3 pin only, no CLK)
Runs WLED software, pre-installed
Dimensions: 33mm x 98mm (roughly 1.5" x 4")
5A MAX per output. (5A Total)
(Over 200 LEDs per output should only exceeded only with proper voltage injection or reduced brightness)
NOTE - Due to size constraints,. there is NO REVERSE POLARITY PROTECTION on the Solo2Go - Always double-check your power wiring!!! Reversed polarity will damage your controller and your lights.
How many pixels can it support?
The ESP32 can calculate about 65k-85k LEDs per second (that means 1000 LEDs @~70fps, 2000 LEDs @~35fps, 4000 LEDs @~18fps)

* For excellent performance, it is recommended to use 400 pixels/output (RECOMMENDED)

*For very good performance, it is recommended to use 600pixels/output
*For good performance, you can use 800 pixels/output
*For okay performance, you can use 1000 pixels/output

Output
Port1: GPIO2

Full RGB spectrum with precise color control

IP65 rated for outdoor installations

Compatible with popular controllers and apps
