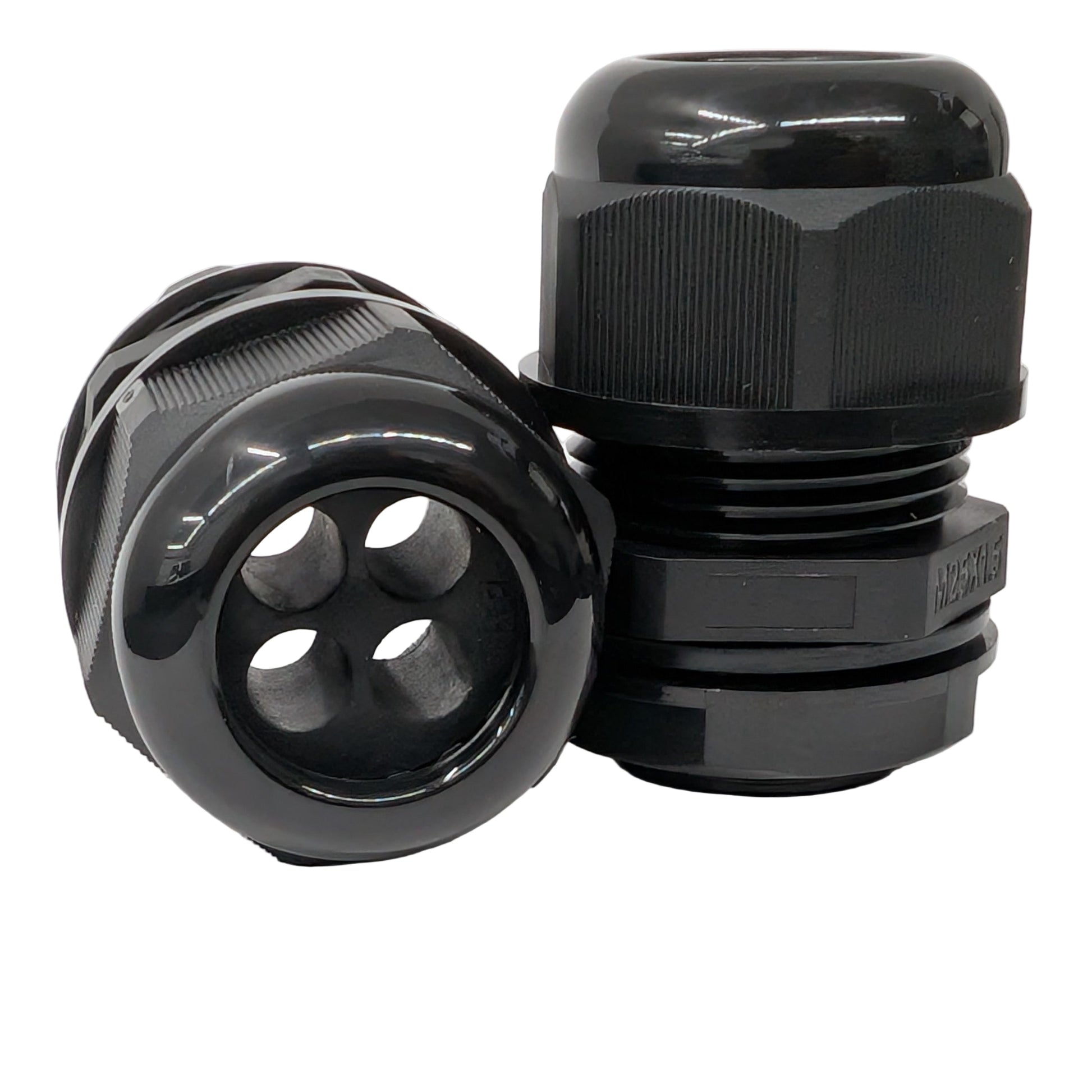

The M25 4-Hole Cable Gland is a multi-hole cable gland for routing up to four round pigtail cables through a single enclosure opening. It is the same style of gland used in our ready-to-run pixel controllers for clean, organized cable entry in pixel controller, receiver, and outdoor electronics builds.
Available individually or in convenient 4-pack quantities.

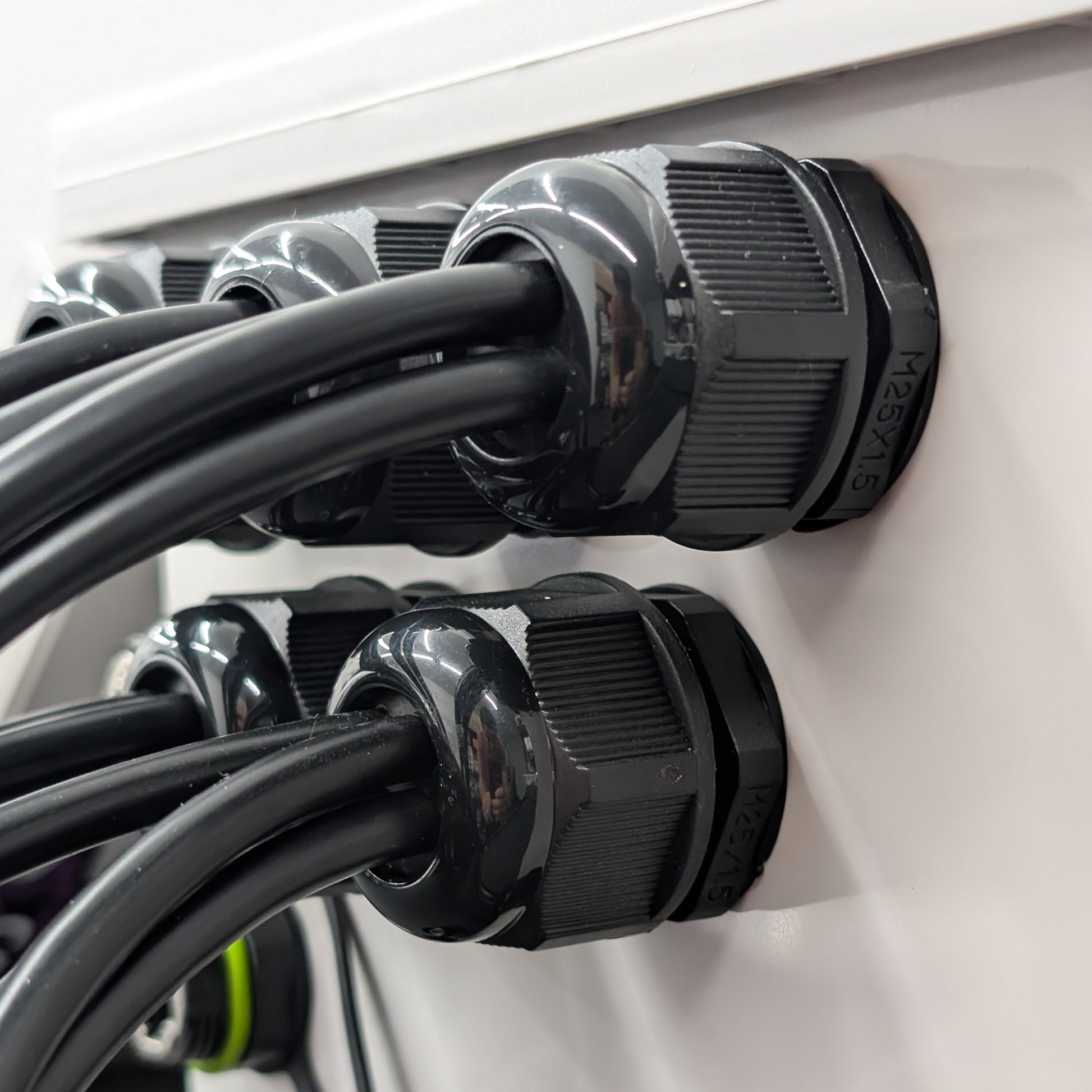

Instead of drilling four separate holes for four separate glands, this M25 multi-hole gland keeps multiple pigtails grouped together in one cleaner pass-through. That means less drilling, fewer enclosure openings, and a more organized layout inside the box.
Why Use a 4-Hole Cable Gland?
Multi-hole cable glands are ideal when several similar cables need to enter or exit the same enclosure. They are especially useful for pixel controller outputs, remote receiver boxes, junction boxes, and other builds using multiple 3-core pigtails.
- One gland supports up to four cables
-
Reduces drilling compared to using four separate glands
- Helps reduce potential water entry points
- Keeps pigtails grouped and organized
- Creates a cleaner enclosure layout
Fits Common 3-Core Pigtail Cable
Each opening is sized for round cable jackets in the 5–7mm range, making this gland a good fit for many common 3-core xConnect-style pigtails used in pixel lighting builds.
Always measure the outside diameter of your cable before installation. Cable jacket size can vary between suppliers and wire types.
Product Features
-
Thread size: M25 x 1.5 metric thread
-
Hole count: 4 holes
-
Cable range: 5–7mm round cable jacket per hole
-
Recommended mounting hole: approximately 25mm
-
Material: Black nylon body with rubber sealing insert
-
IP level: Manufacturer-listed IP68 rating when properly installed with suitable round cables
-
Includes: Cable gland body, sealing nut, 4-hole internal seal, locknut, and sealing washer/gasket
Common Uses
- Pixel controller enclosures
- Remote receiver boxes
- xConnect-style pigtail pass-throughs
- Waterproof junction boxes
- Outdoor electronics projects
- DIY weatherproof enclosures
- Cable bundle management
Installation Notes
- Use with one round cable per hole.
- Measure your cable outside diameter before installation.
- Cables outside the 5–7mm range may not seal properly.
- For best sealing, each hole should be filled with a properly sized round cable or otherwise sealed.
- Not intended for flat cable, loose individual wires, or multiple cables through one hole.
- Nylon fittings should be secure, but not over-tightened.
Recommended Accessories
For easier installation, pair this gland with our 33mm Cable Gland Tool Set. It is designed to help tighten both the body locknut and sealing nut without bulky wrenches or sockets.
- Pass-through design lets cables stay in place while tightening
- Fits a standard 3/8" drive socket ratchet
- Compact enough for tight enclosures
- 3D printed from durable PETG
Need to Drill Your Enclosure?
Our 6–25mm Titanium Spiral Step Drill Bit is a good match for preparing plastic enclosures for M25 cable glands. The stepped design helps create clean, controlled holes in enclosure walls.
Bottom line: the M25 4-hole cable gland is a clean, efficient way to route multiple pigtails through one enclosure opening while reducing drilling, improving cable organization, and keeping your controller build easier to service.
