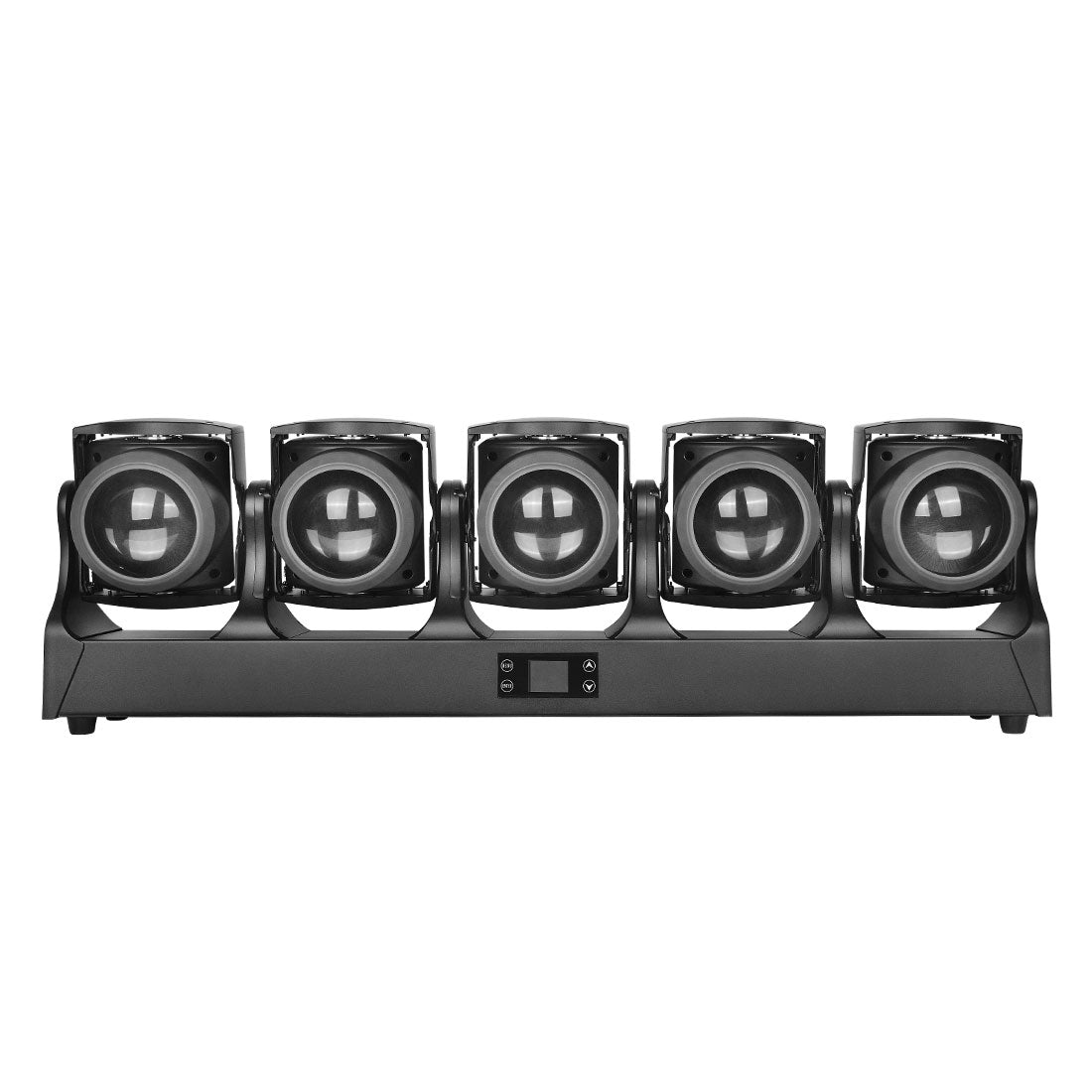

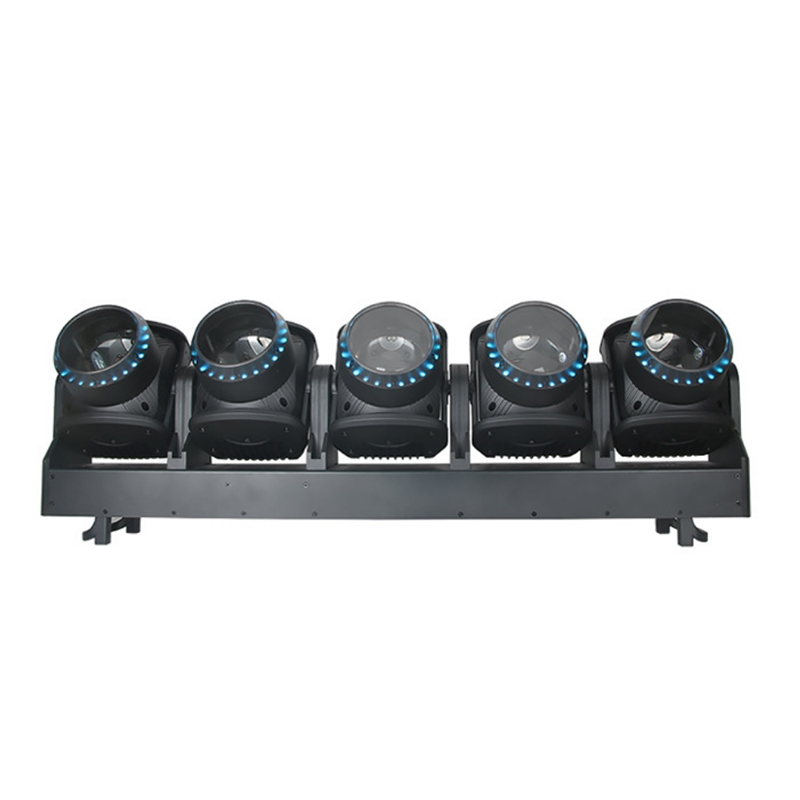

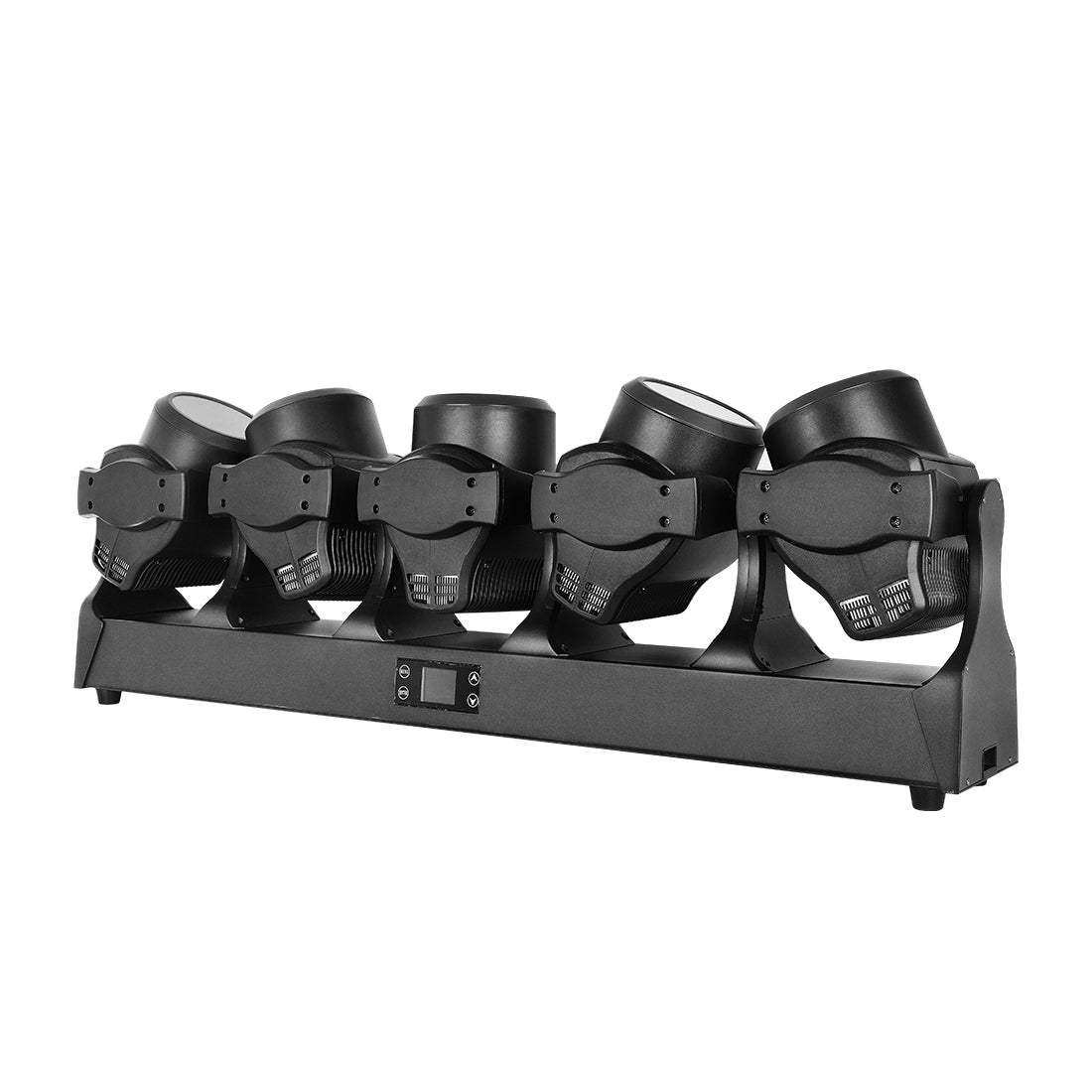

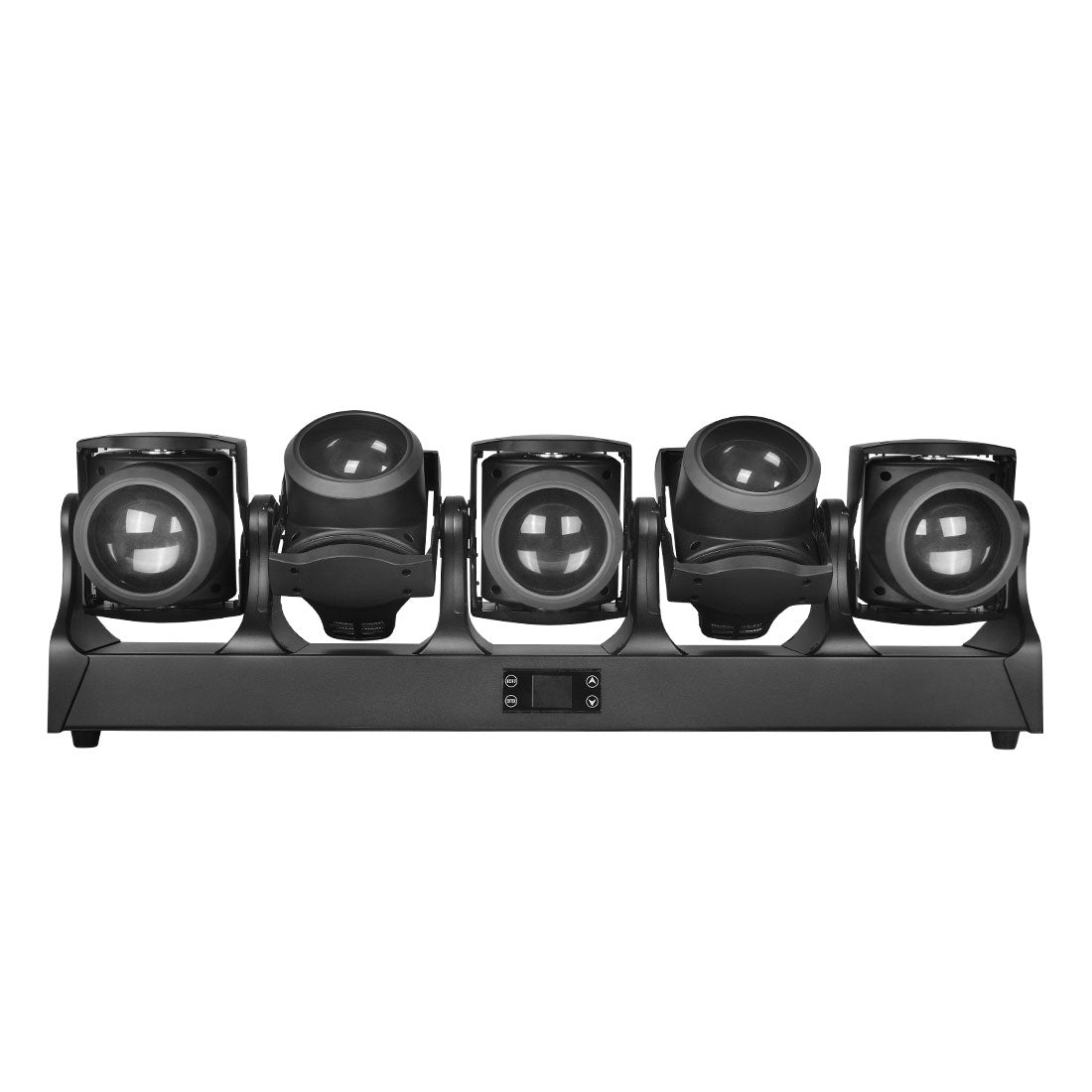

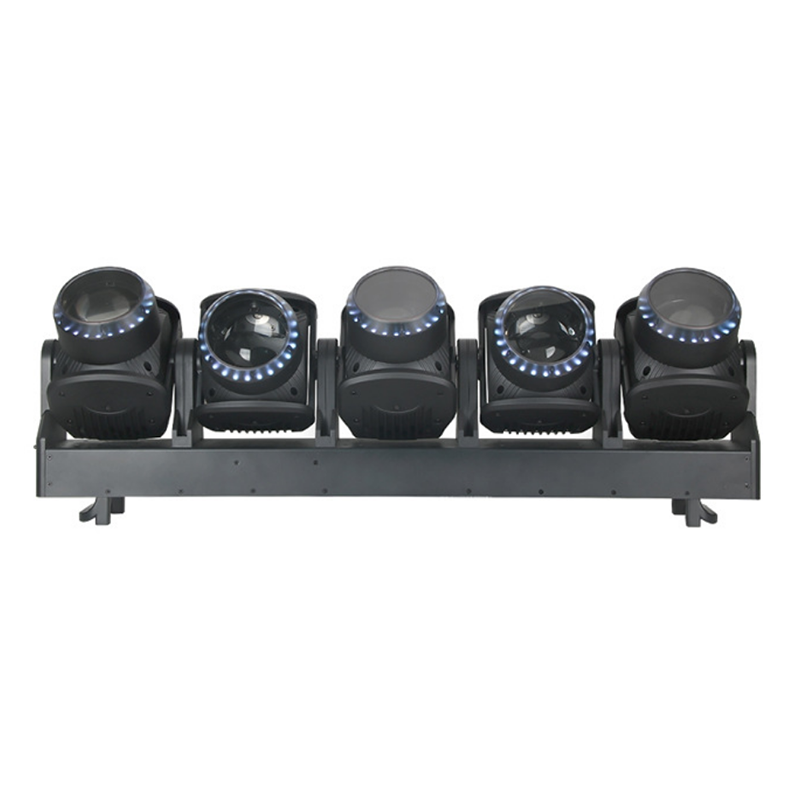

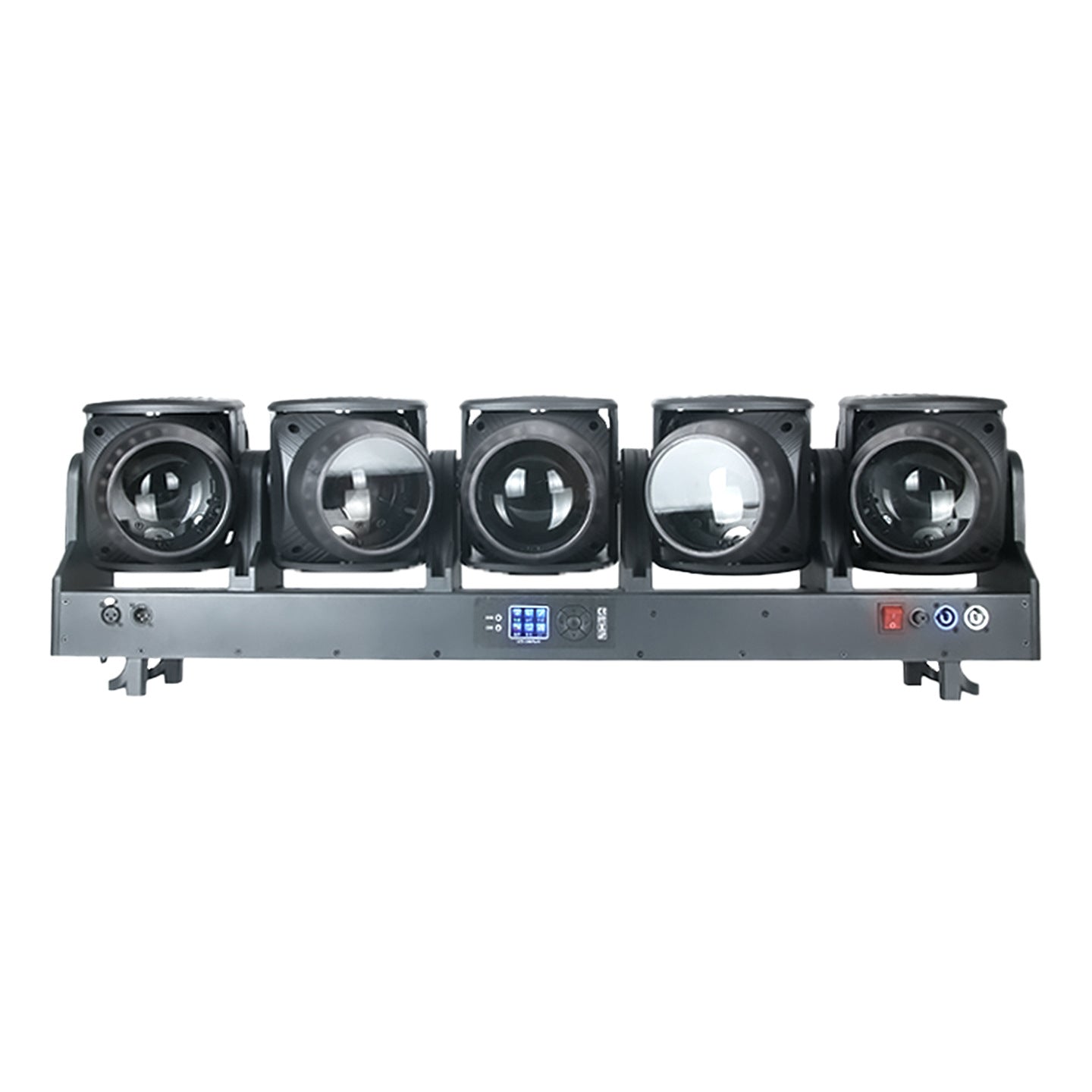

Equipped with 5×120W main LEDs and 120×0.5W RGB outer LEDs, this fixture delivers up to 13,000 lumens with a beam angle of 3°–30° and field angle of 4°–35°.
Advanced 16-bit pan (59°) and tilt (221°) movements offer smooth, precise positioning with auto-correction. Features include dynamic strobe, 0–100% linear dimming, rich color mixing, and macro effects.
Supports DMX512 & RDM with 41/71 channel modes and onboard LCD display. True1-type waterproof power I/O and IP33 protection ensure stable performance in diverse environments. Ideal for professional stage, event, and architectural applications.
Specification
Light Source Main Light: 5 x 120W LEDs Outer Circle: 120 x 0.5W RGB LEDs Total Lumen Output of Fixture: 13,000 lumens Life Expectancy: 20,000 hours Optical System Beam Angles: 3°-30° Field Angles: 4°-35°

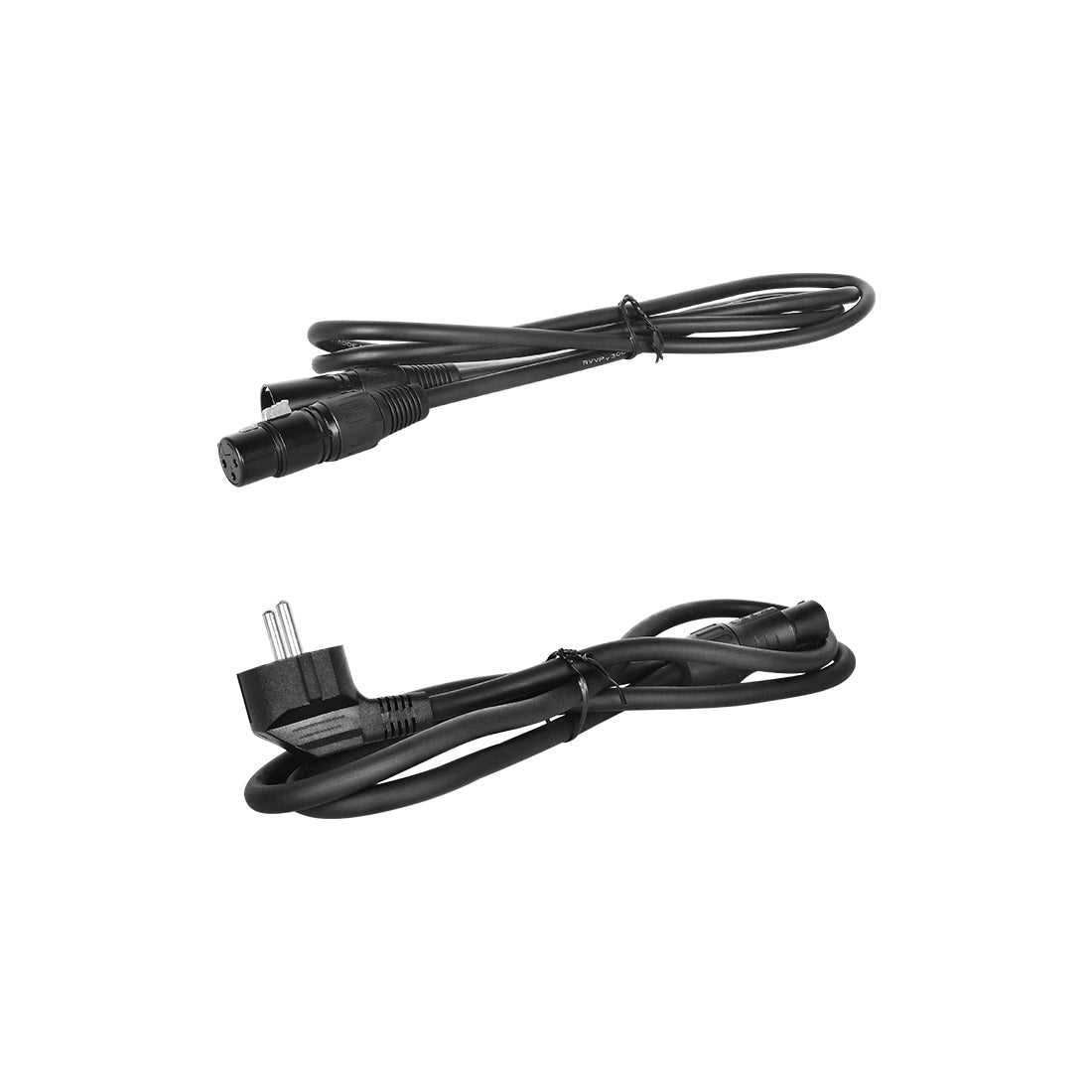

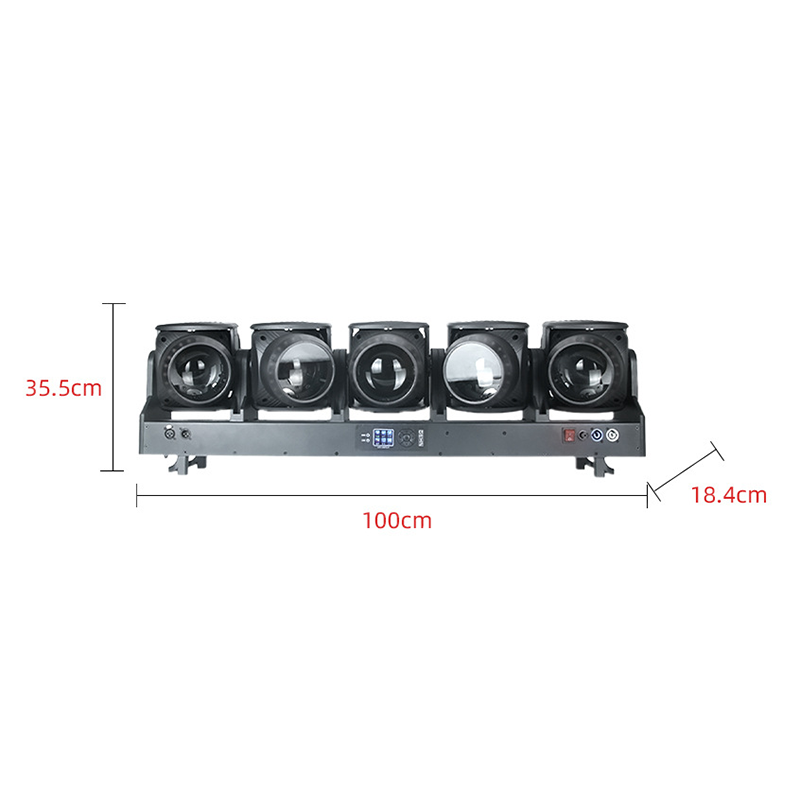

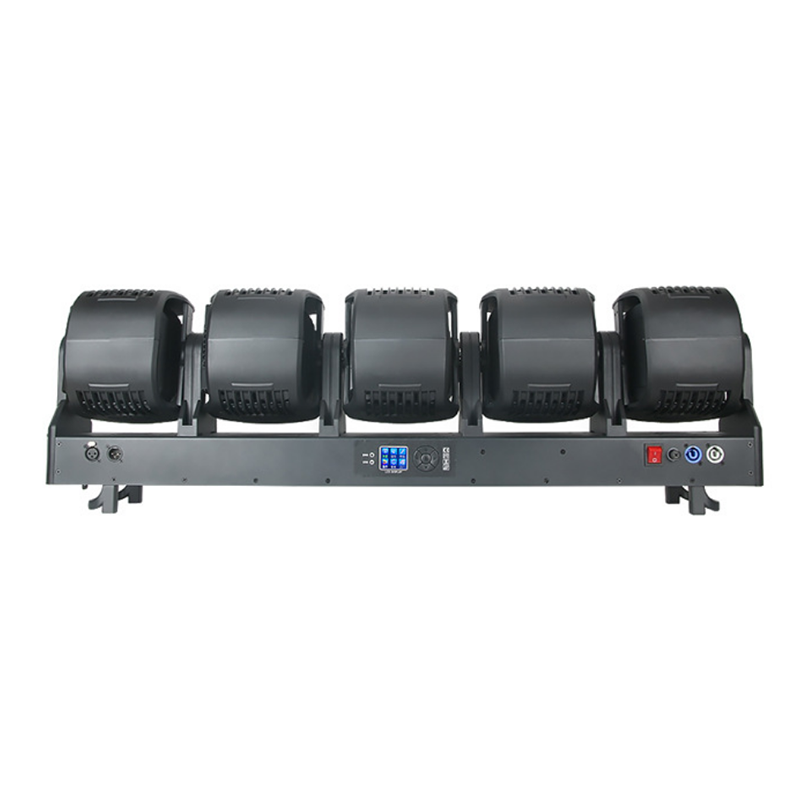

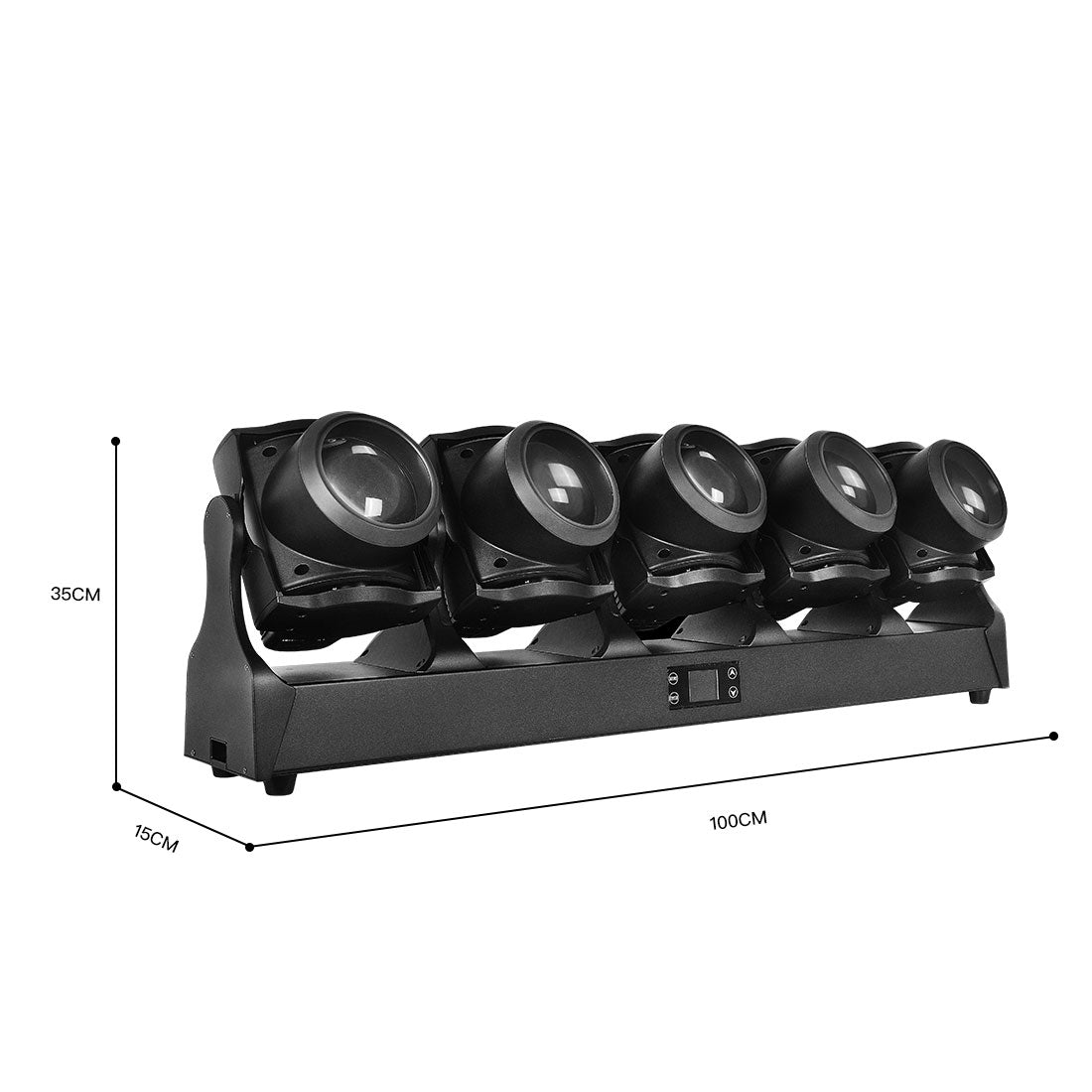

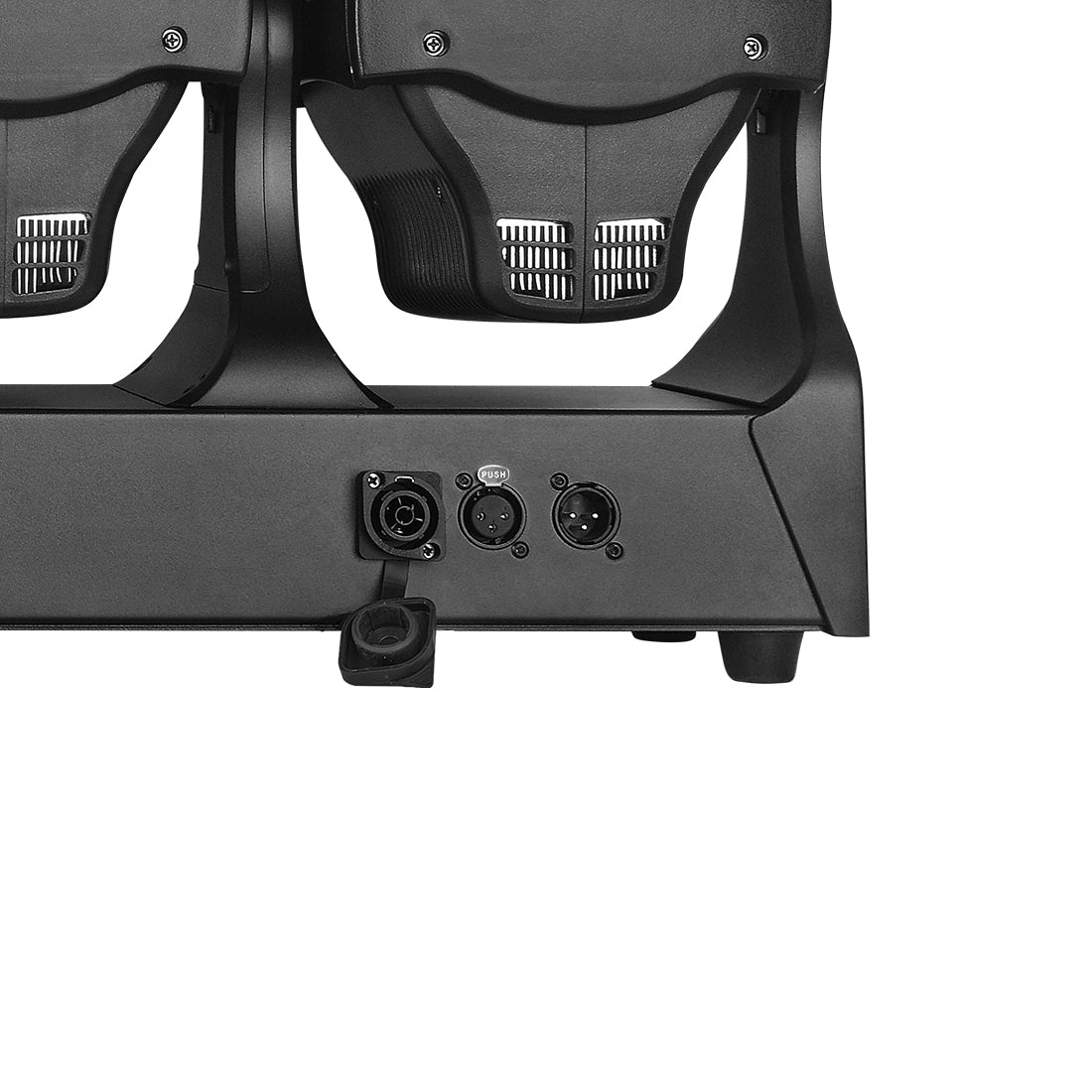

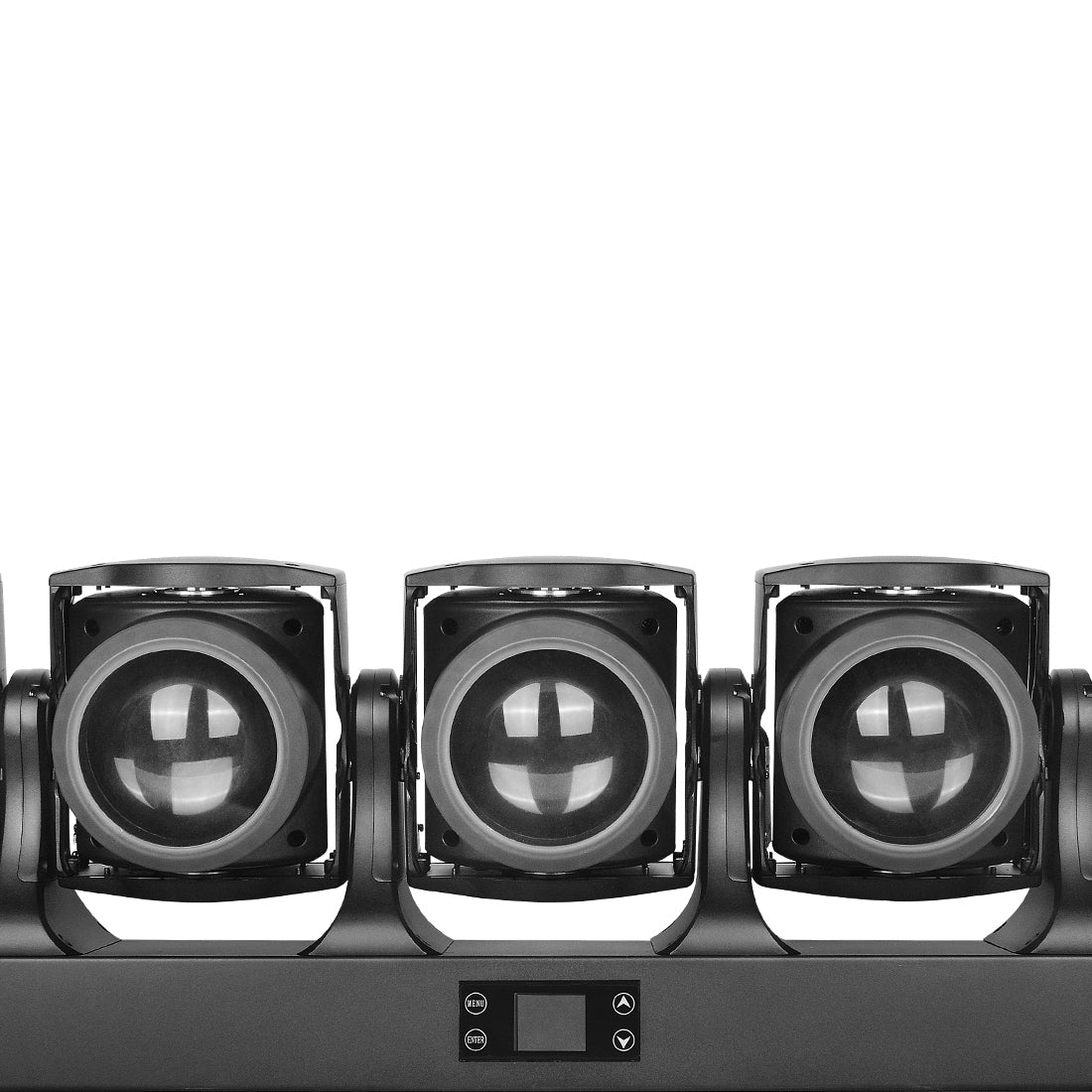

Control and Program 4 button touch control panel Display: LCD display Protocols: DMX512, RDM DMX Protocol Modes: 2 Control Channels: 41/71CH Firmware Upgrade: Upgrade via DMX link Pan & Tilt Pan Movement: 59° Tilt Movement: 221° Automatic Pan/Tilt position correction Resolution: 16 bit Other Effects Outstanding strobe effects with variable speed Variable light adjustment from 0-100% dimming Outstanding color mixing effects Outstanding color macro effects Linear focusing structure Electrical and Connectors Input Voltage Range: 100-240V~ 50/60Hz Power Consumption: 935W Power In/Out: Waterproof power connector in/out (True1 type) Data In/Out: 3-pin XLR Fixture Specification Fixture Size:1002*196*334mm Net Weight: 26.6kg Work environment Maximum Ambient Temperature: 40°C Minimum Operating Temperature: -10°C Maximum Surface Temperature: 75°C Protection Rating: IP33
