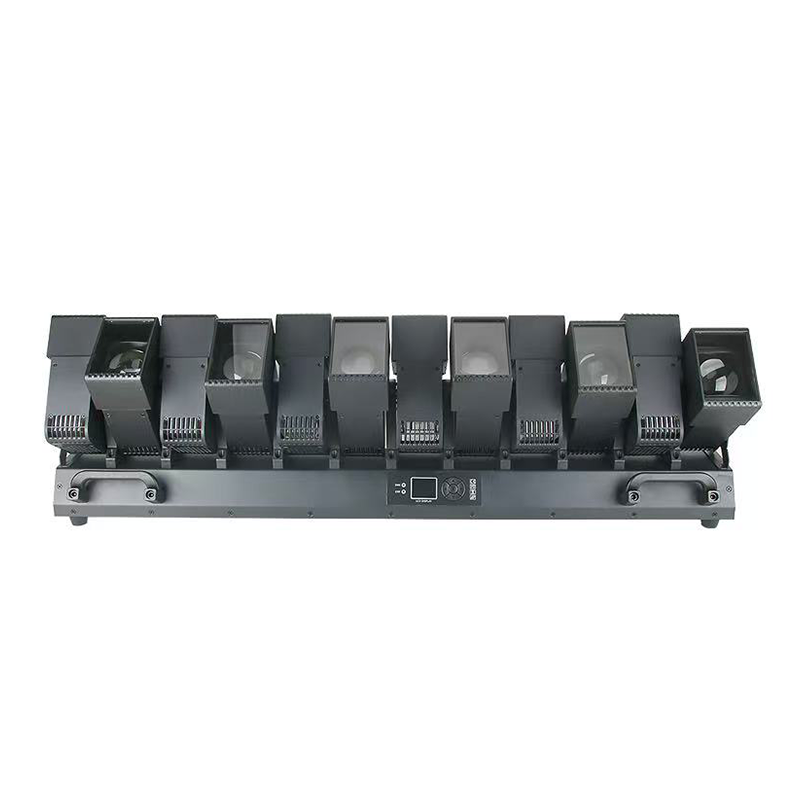

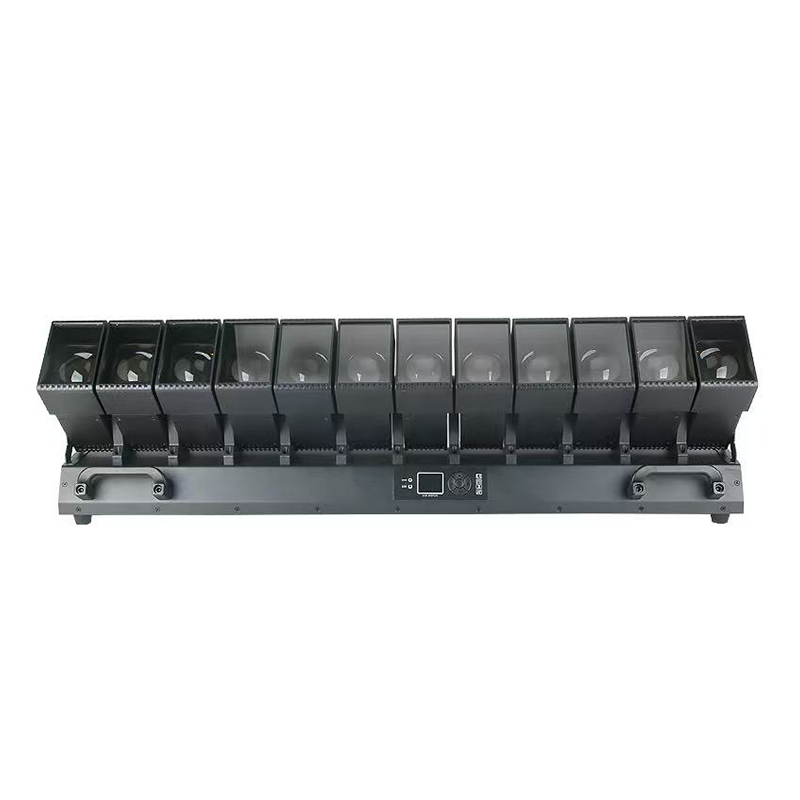

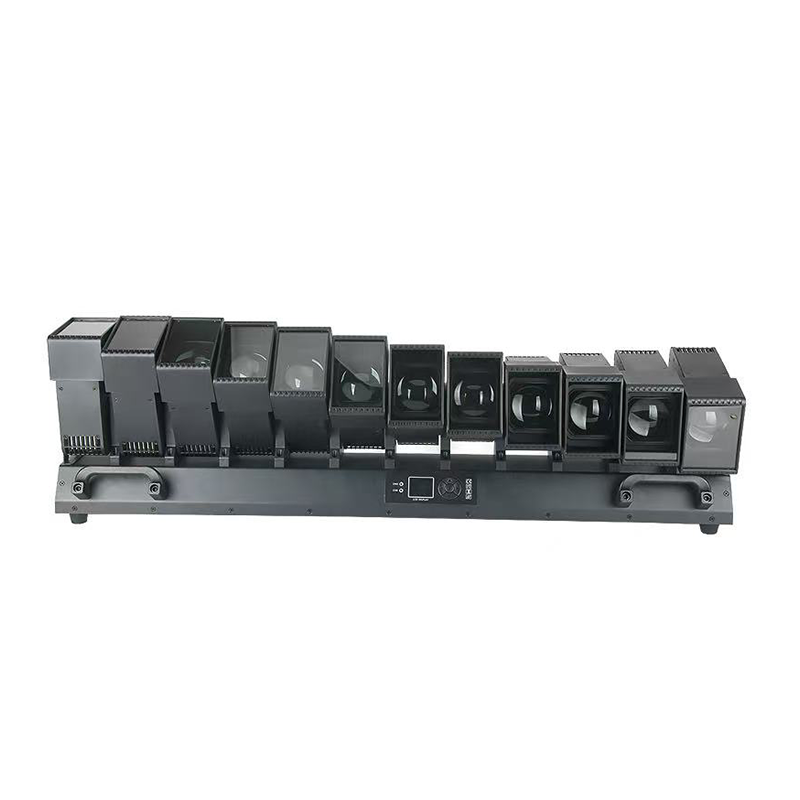

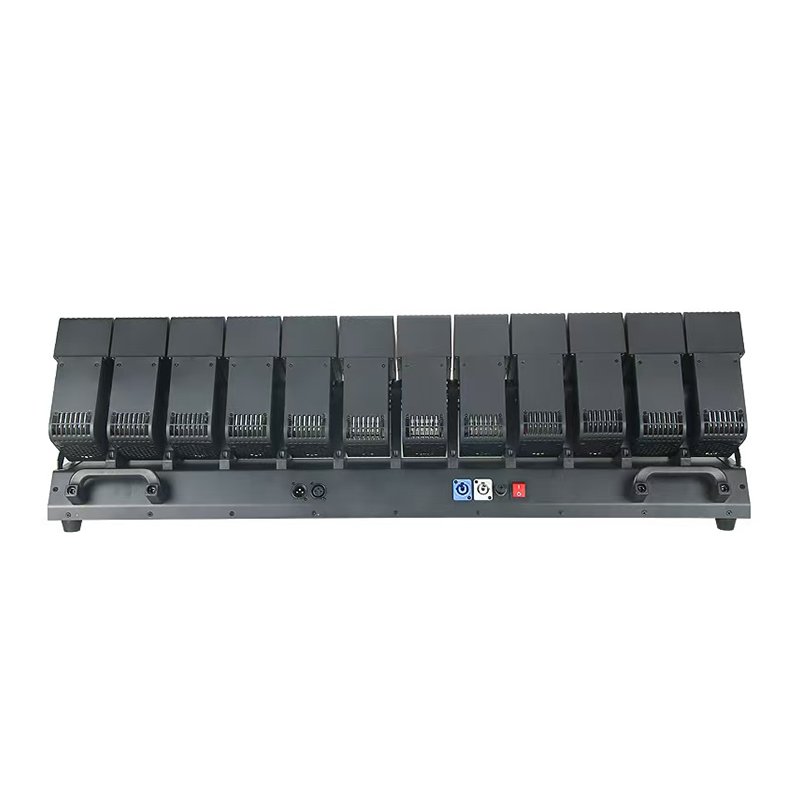

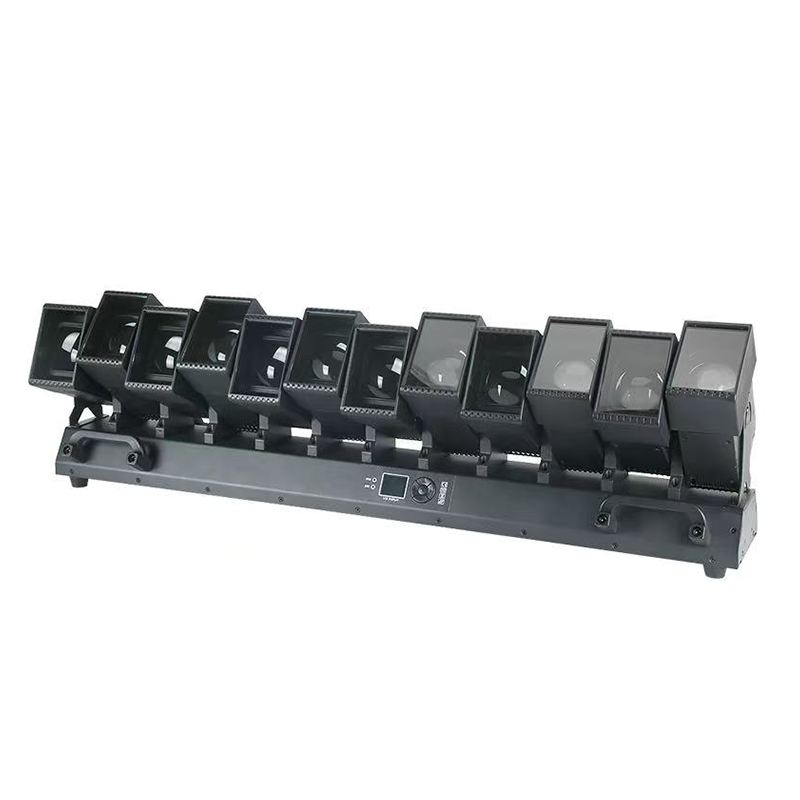

KW5 12x60w Zoom Pixel Beam Bar Moving Head Light

Hilights

12x60W RGBW LED Swing Bar – Powerful Wash, Beam & Pixel Effects
Equipped with 12 x 60W RGBW 4-in-1 LEDs, this 800W LED swing bar delivers intense wash, beam, and pixel-mapping effects.

Featuring advanced 32-bit linear dimming, 180° smooth tilt movement, and a 4–45° motorized zoom, it offers exceptional versatility for dynamic stage performances.

Multiple DMX channel modes (CH20 to CH179) with RDM support ensure precise control. Designed with a durable metal housing, DMX/power in & out, and reliable operation from -30°C to 50°C.

Specification

Voltage: AC100~240V 50/60HZ
Power:800W
Lamp beads: 12 * 60 W RGBW 4IN1 LEDs
Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function.  Channel: CH20. CH169A CH169B.CH53.CH101.CH155.CH179
Dimming: 32-bit 0~100% linear dimming
Features: Single swing+staining+beam
Tilt Movement: 180°,16 Bit
Zoom:4-45°  Working temperature: -30 ° C~50 ° C
Strobe frequency: 1-30HZ
Appearance: Metal, Black
Connection method: DMX512 input/output/power input/output. IP rating: IP20
Size: 1000 * 300 * 165MM
Weight: 26.5 kg
