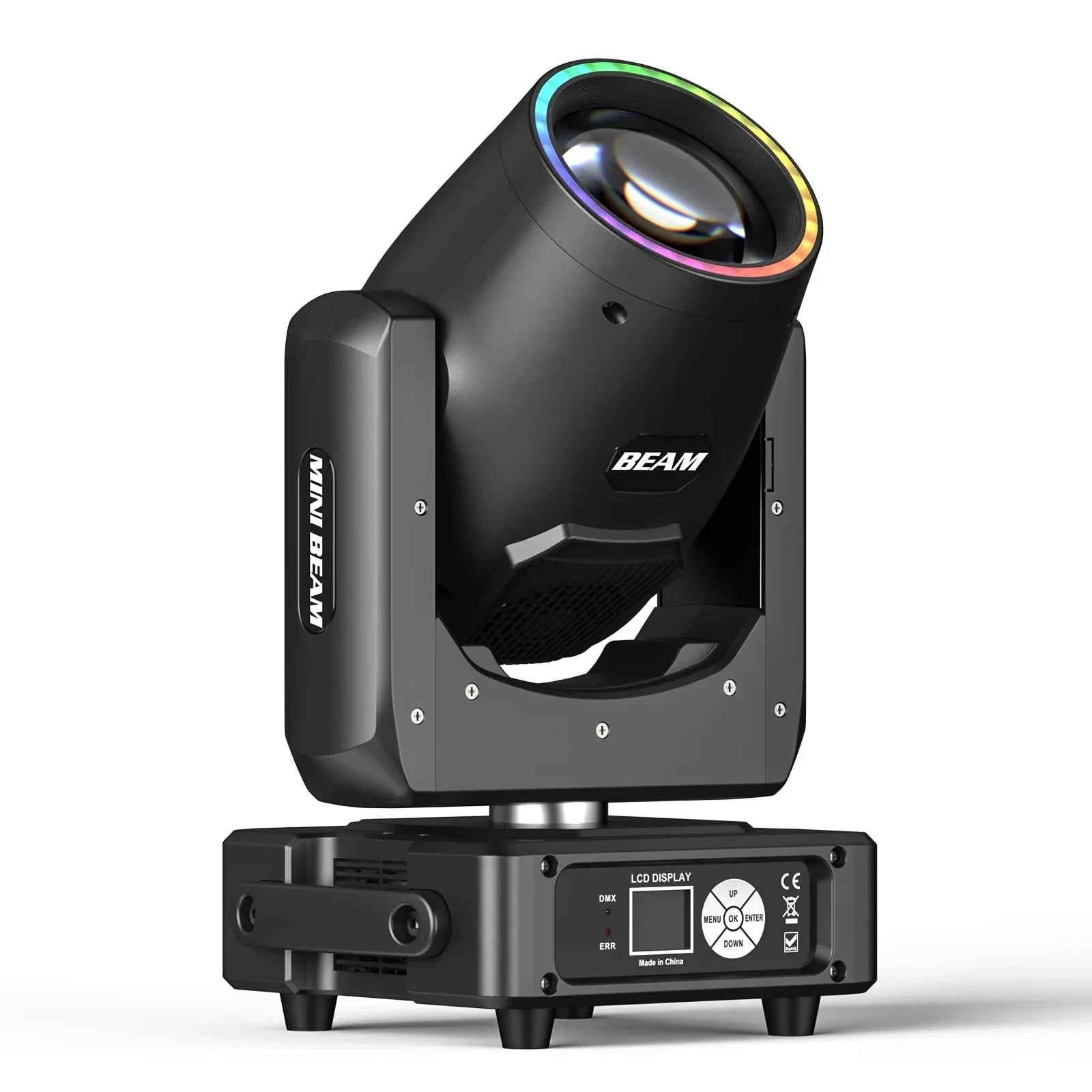

KB6 Mini230 Moving Head Beam with RGB LED Strip

Elevate your stage production with the KB6 Mini230

A compact yet powerful Moving Head Beam designed for professional DJs, clubs, and events. This versatile fixture combines a razor-sharp beam with a stunning visual twist: a built-in RGB LED strip featuring 27 LEDs for an incredible 48 unique lighting effects. Create dynamic honeycomb prism effects, mesmerizing rainbow washes, and intricate patterns with its 48-facet prism and 14 fixed gobos.

With 13 vibrant colors and flexible motion control (540° pan, 270° tilt), this Moving Head Beam delivers unparalleled creative freedom. Advanced features like DMX512/RDM control, sound-activated mode via a built-in microphone, and easy daisy-chaining of up to 6 units make setup and operation a breeze. Housed in a durable casing with quick-lock brackets for fast installation, the KB6 Mini230 is the ultimate lighting tool for creating a high-impact, professional light show every time.

Specification:

Light Source：1PCS white 230W OSAM Light Bulb + 27PCS 0.5w RGBW three and a LED lamp beads

Color temperature: 7000K-8000K

Lamp output luminous flux: 9800lm

LED average life:2000H

Optical systems：

Angle of light: 2.3°

Effective control distance: 5-30M

Illumination: 230000Lux@10 meters

Prism/fogging piece：

1PCS 48 ling honeycomb mirror

colorful fogging: rainbow effect + fogging effect

Color plate: 13+1 color plate (13 color pieces + 1 white light hole)

Fixed gobo disk: 14+1(14 patterns + 1 white light hole)

Other Effects：

Motorized focusing system：focusing angle range: 2-8°

Multiple speed strobe effect：1-10Hz

X/Y axis：

X-axis：540°

Y-axis：270°

X-axis/Y-axis position out-of-step auto-correction

X-axis/Y-axis: 16 bit precision scanning

Fixed lock: horizontal/vertical lock

Control and Programming：

Control p rotocol: Standard DMX512 protocol+ RDM protocol

Channel Mode: self-propelled, voice-activated, master-slave,DMX512

Control channel: 18CH

Control panel: LCD display

Electrical and Interfaces：

Input voltage range: AC110V-240V 50/60Hz

Rated power: 450W

Data Connection: Three-core XLR input/output

 Power Outlet: Power Connector Input/Output, Straight Outlet

Light Specification：

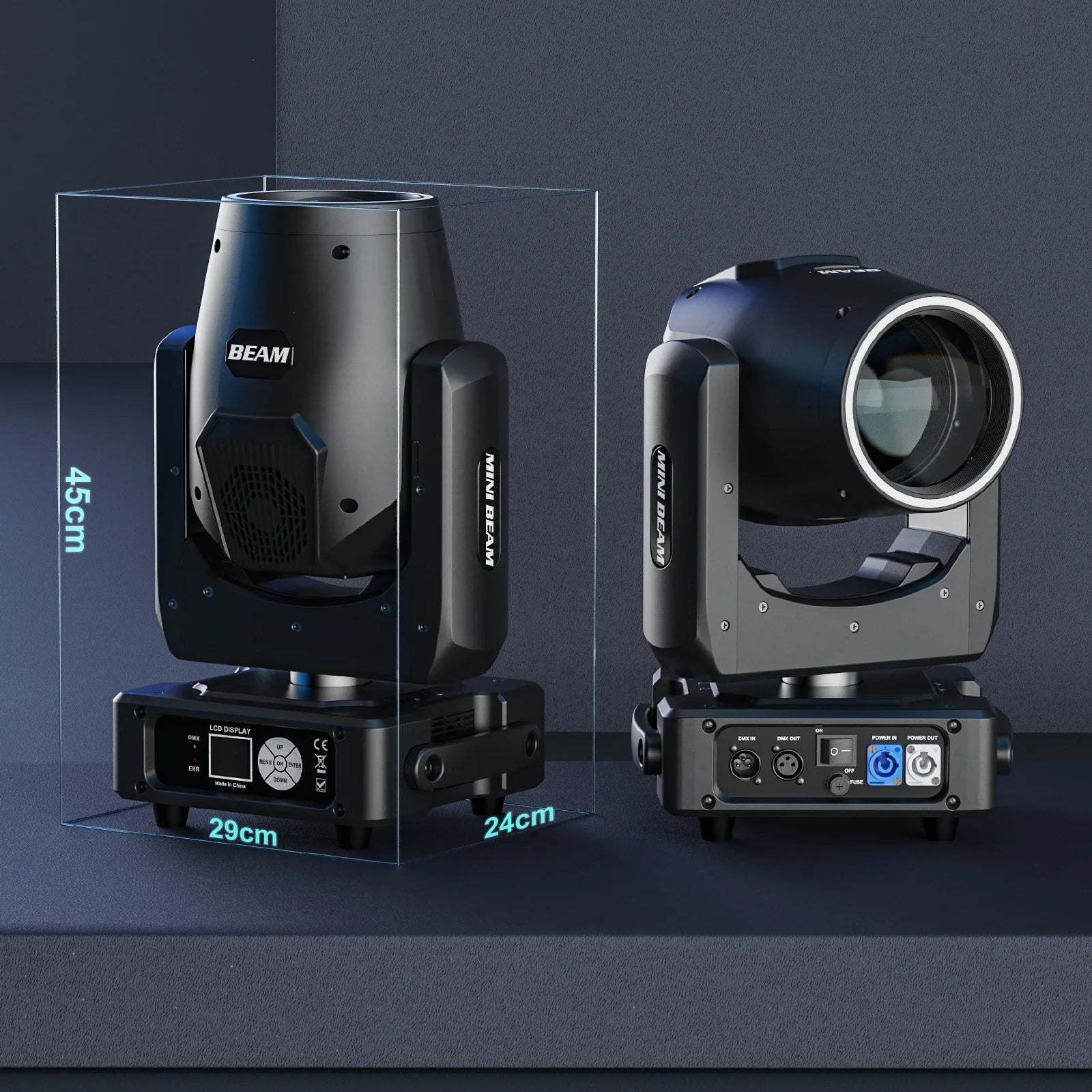

Light dimensions: 290x240x450mm ；Net weight 10.2kg

Carton size:370x350x500mm；Weight: 12kg

Working environment：

Maximum ambient temperature: 45°C

Minimum Operating Temperature: -10°C

Maximum surface temperature: 60°C

Protection class: IP20

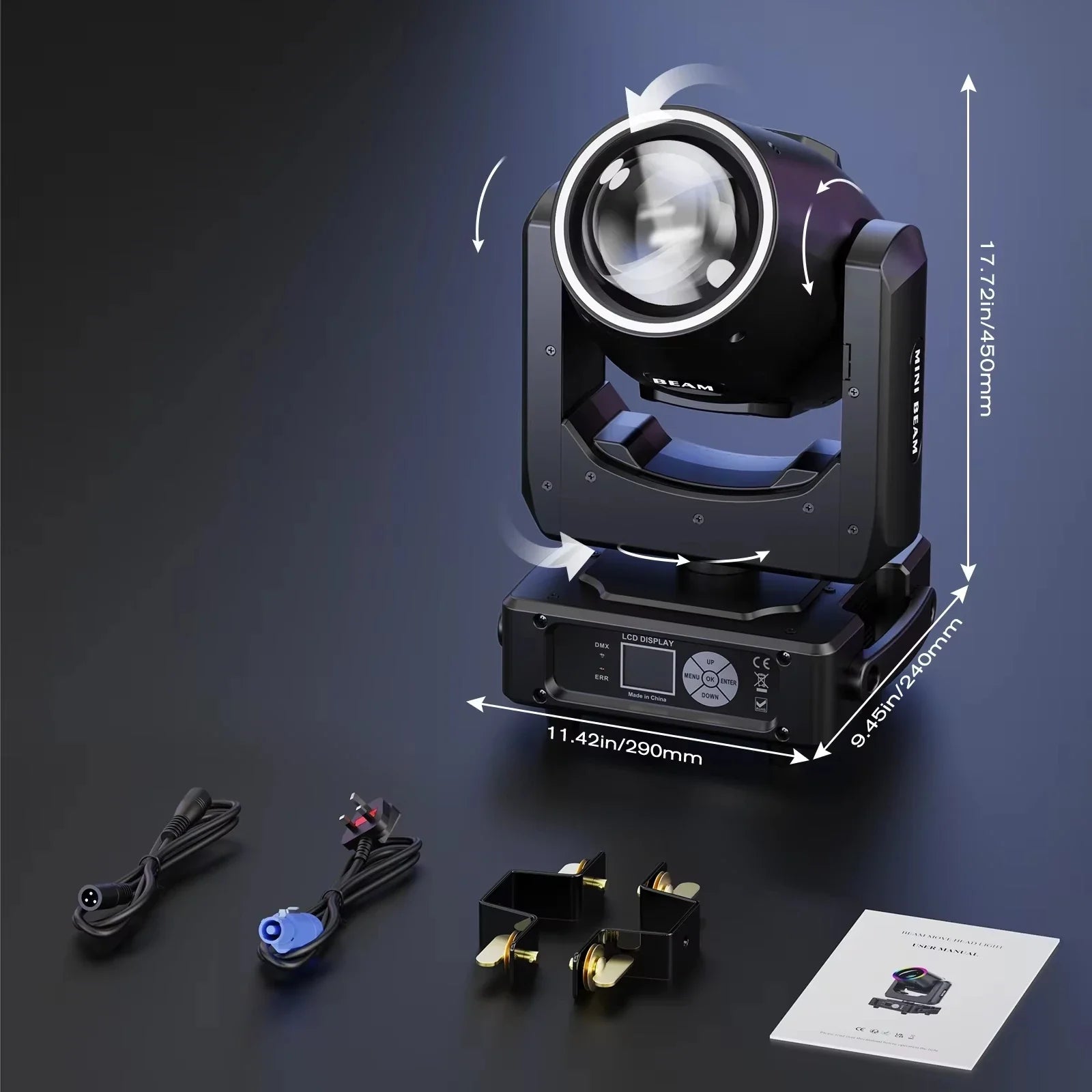

Packing List:

1. Stage light *1

2. Stand *2

3. Power cord *1

4. Instruction manual *1
