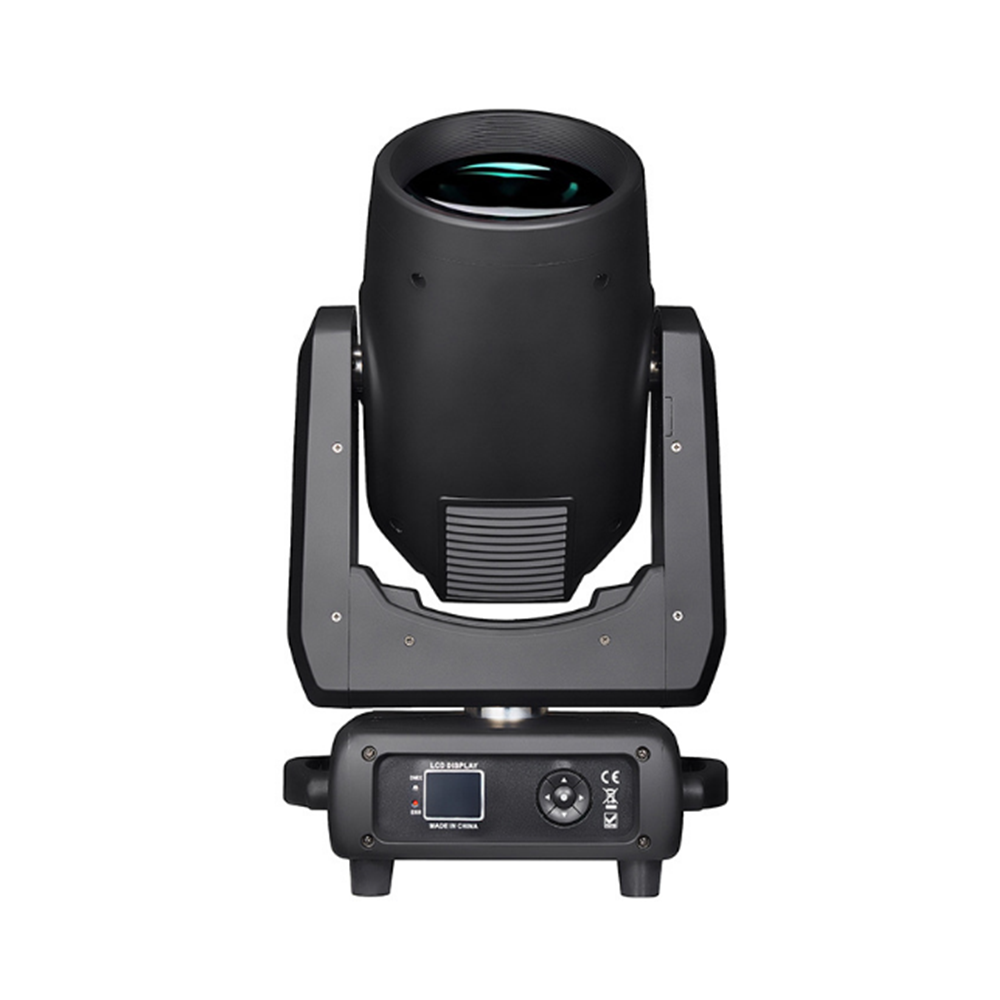

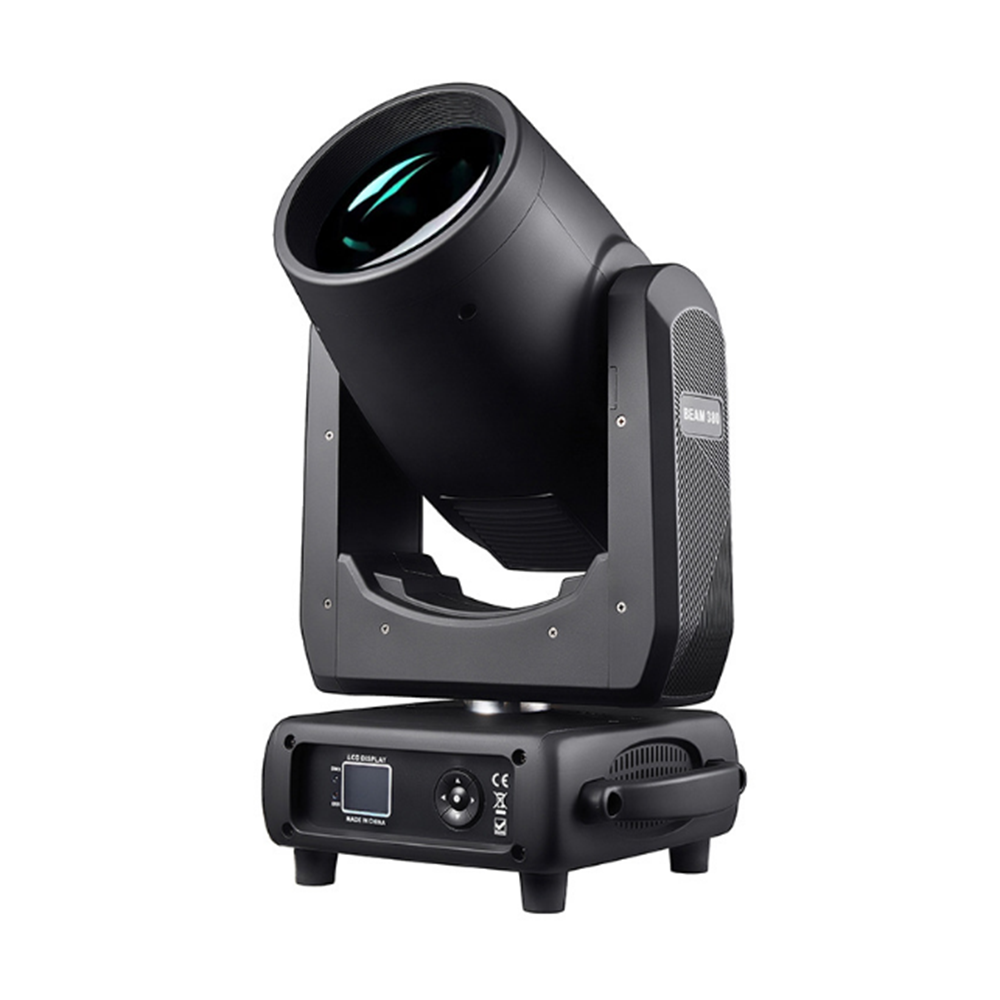

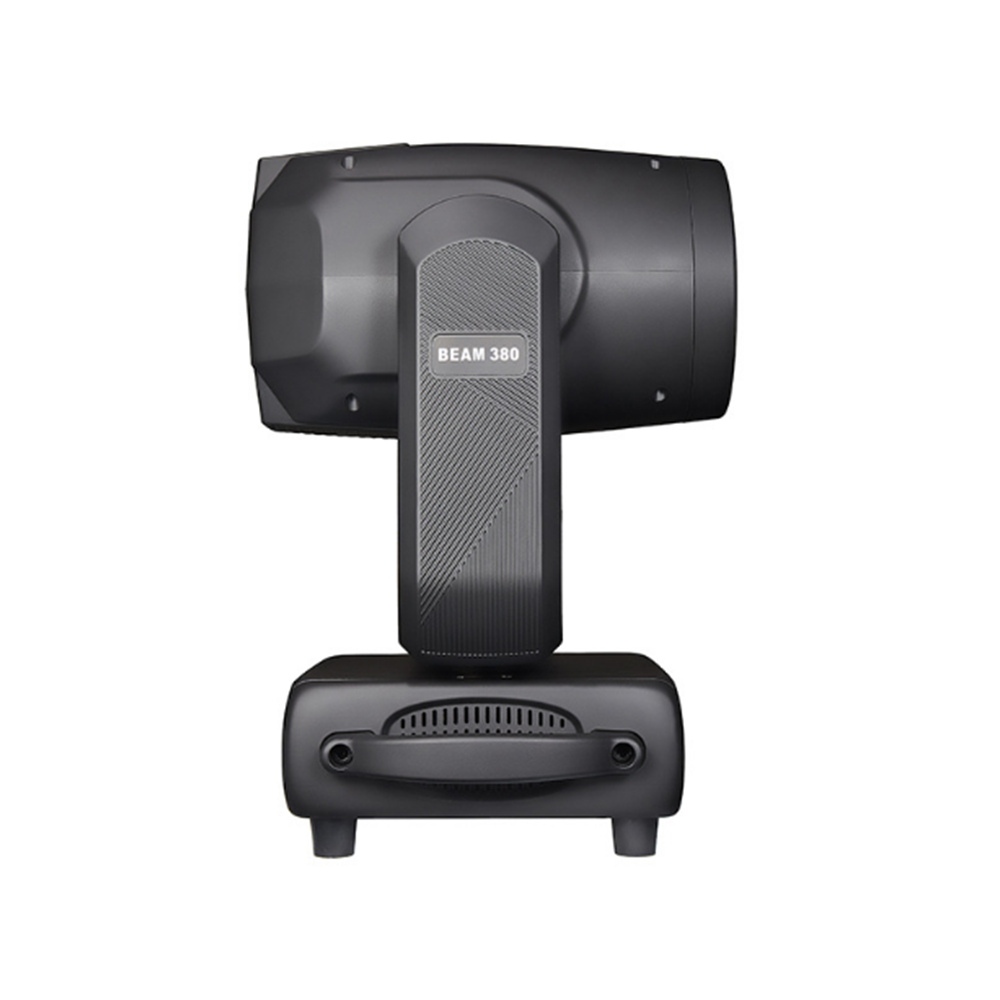

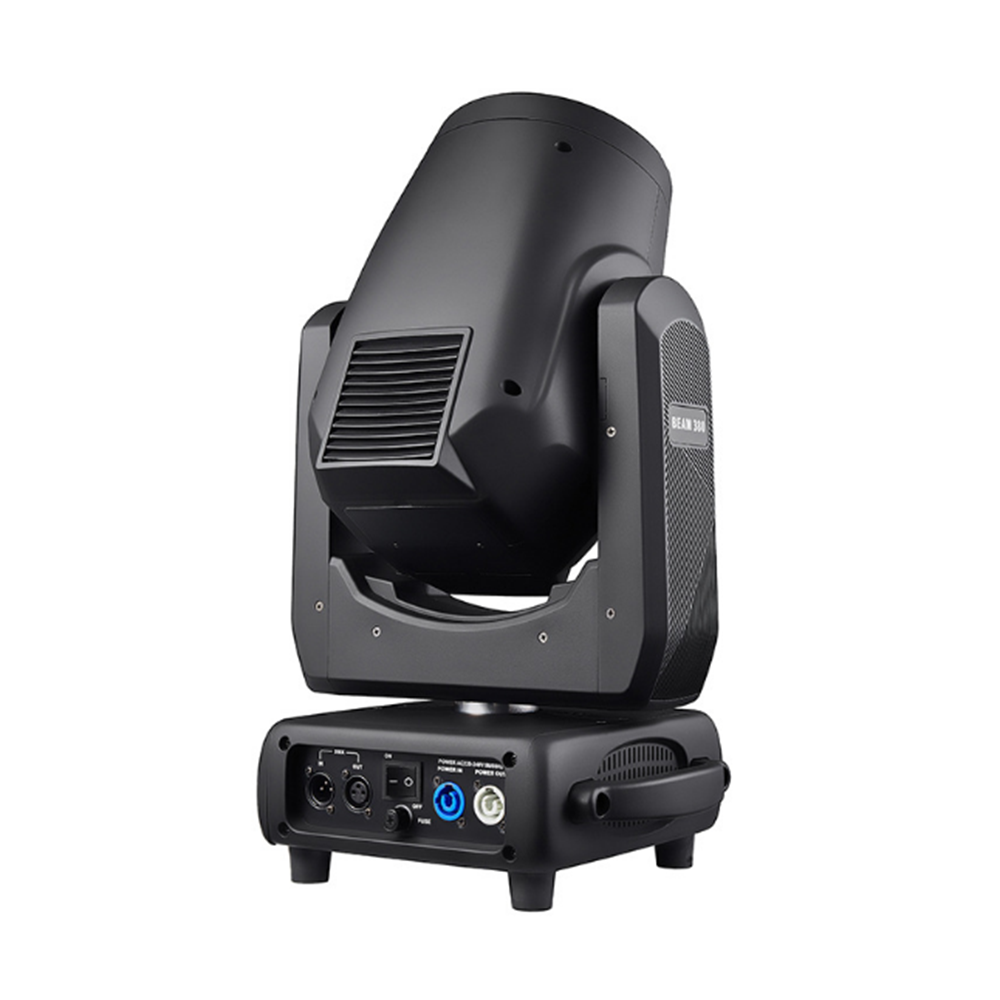

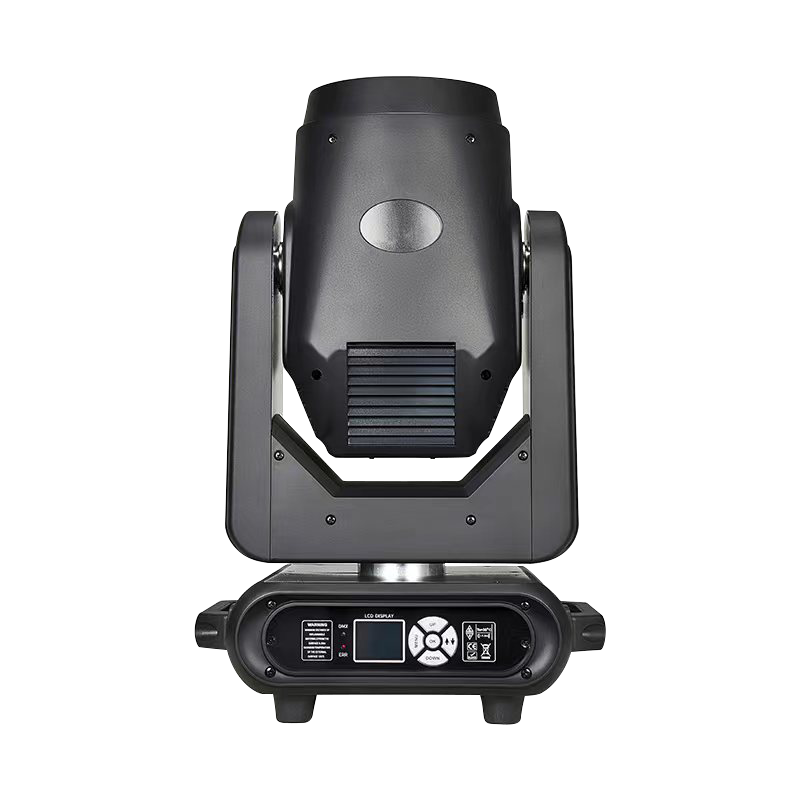

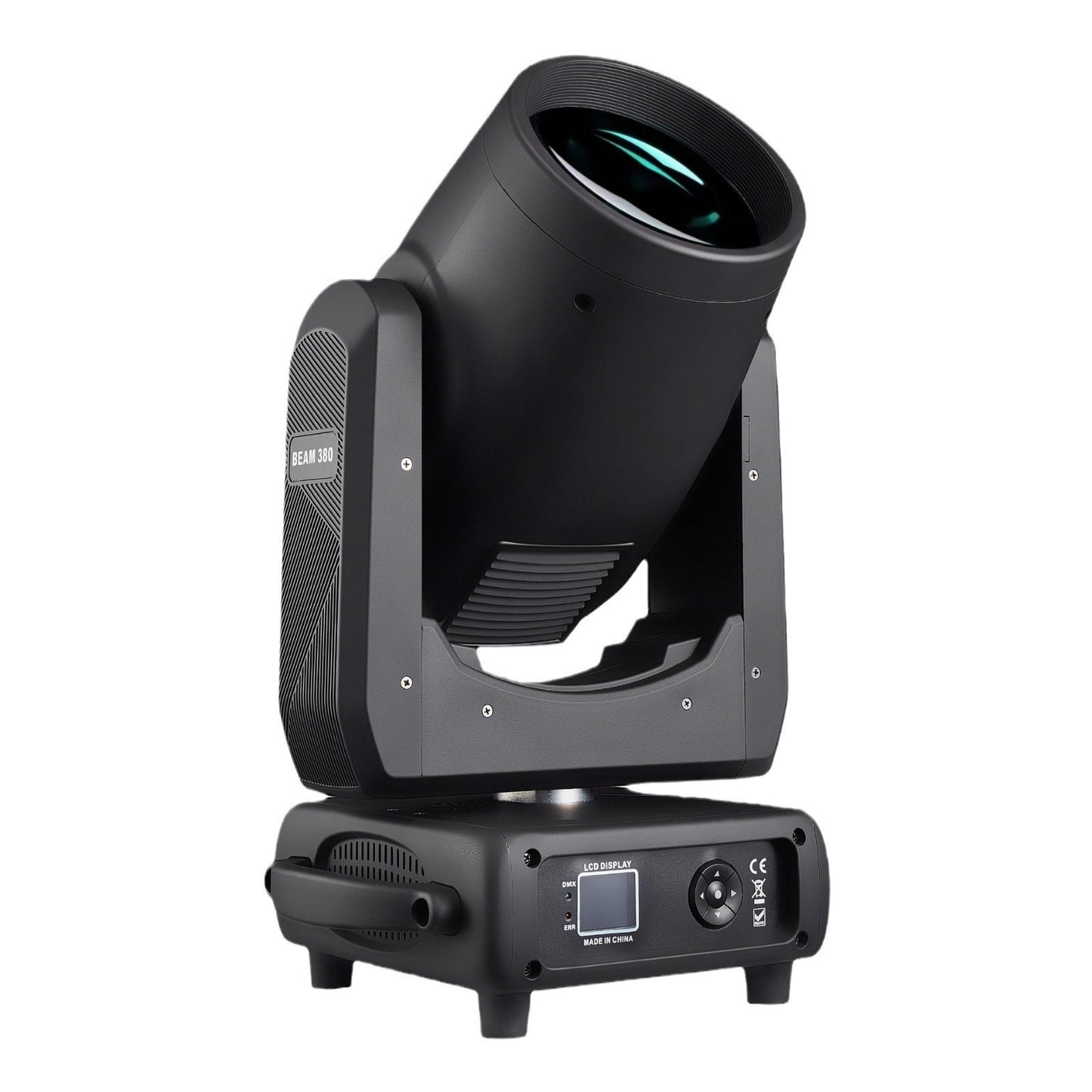

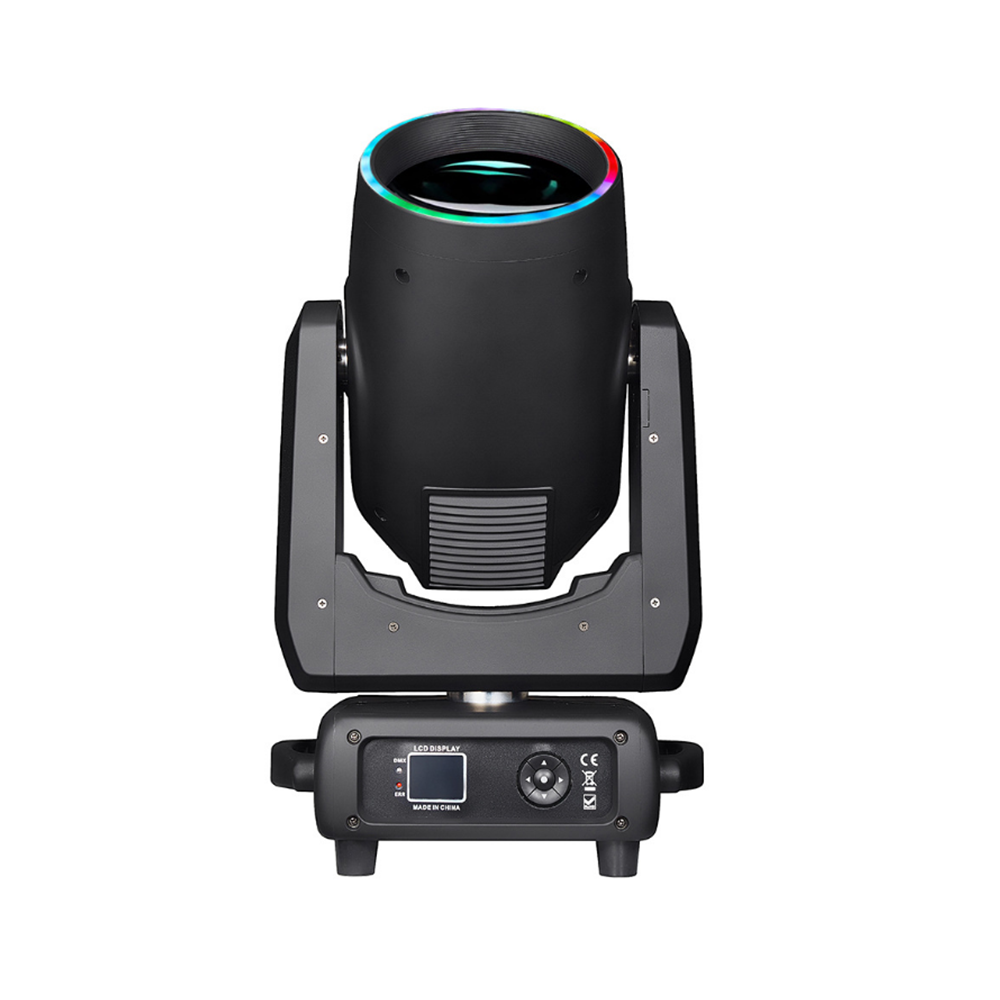

KB7 Mini 380W Moving Head Light 17R Beam Light

The KB7 Mini 380W Moving Head Light is a professional-grade 17R beam fixture engineered to deliver unparalleled brightness and precision for large-scale stage productions.

Powered by a high-intensity 380W Phoenix or OSRAM bulb, this powerhouse outputs a stunning 7,950lm luminous flux at a crisp 8,500K color temperature, ensuring your light show pierces through any venue with high-impact clarity.

Designed for creative versatility, this 380W Moving Head Light features a comprehensive color wheel with 14 colors plus white and a multifaceted pattern plate containing 9 fixed and 4 premium glass gobos. Its standout optical feature is the sophisticated dual prism system—comprising a 48-facet honeycomb prism and a 12-facet prism—which can be independently rotated and stacked to create intricate, room-filling visual effects.

With 16-bit precision scanning (540° Pan / 270° Tilt) and 0%–100% linear focus and atomization, you gain total control over every beam. The unit is built for reliability, featuring an electronic inductive ballast, overheat protection, and a photoelectric reset system. Whether for concerts, weddings, or high-end clubs, this compact 15kg fixture offers seamless DMX512 control (16 channels) to elevate your lighting design to the next level.

Specification

• Power Supply: AC110~240V, 50/60HZ
  Total Power: 600W
  Bulb: Phoenix 380W/OSRAM 371
  Color Temperature: 8500K
  Color Wheel: 14 colors + white light, adjustable rotation speed, bidirectional water flow effect and rainbow effect
  Pattern Plates: 9 fixed patterns, 4 glass patterns + white light
  Prisms: 48 honeycomb prisms 12 prisms, double prisms can be stacked and rotated independently in both directions
  Atomization: 0%~100% linear atomization

  0-100% linear focus, from far to near
  Strobe: 1-12 F.P.S, adjustable speed strobe effect, supports strobe macro function

  Ballast: Electronic inductive ballast

  Luminous flux: 7950lm

  Overheat protection

  IP protection rating: IP20

  Four tactile switches, dot matrix display, can be reversed 180°

  Display: LCD screen, Chinese/English interface switching display

  Photoelectric reset system: Automatically retrieves and resets in case of accidental malfunction

  Control method: DMX512/auto-run/master-slave

  Channel mode: 16 international standard DMX512 channels

  Horizontal scan: 540° (16-bit precision scan) electronic error correction

  Vertical scan: 270° (16-bit precision scan) electronic error correction

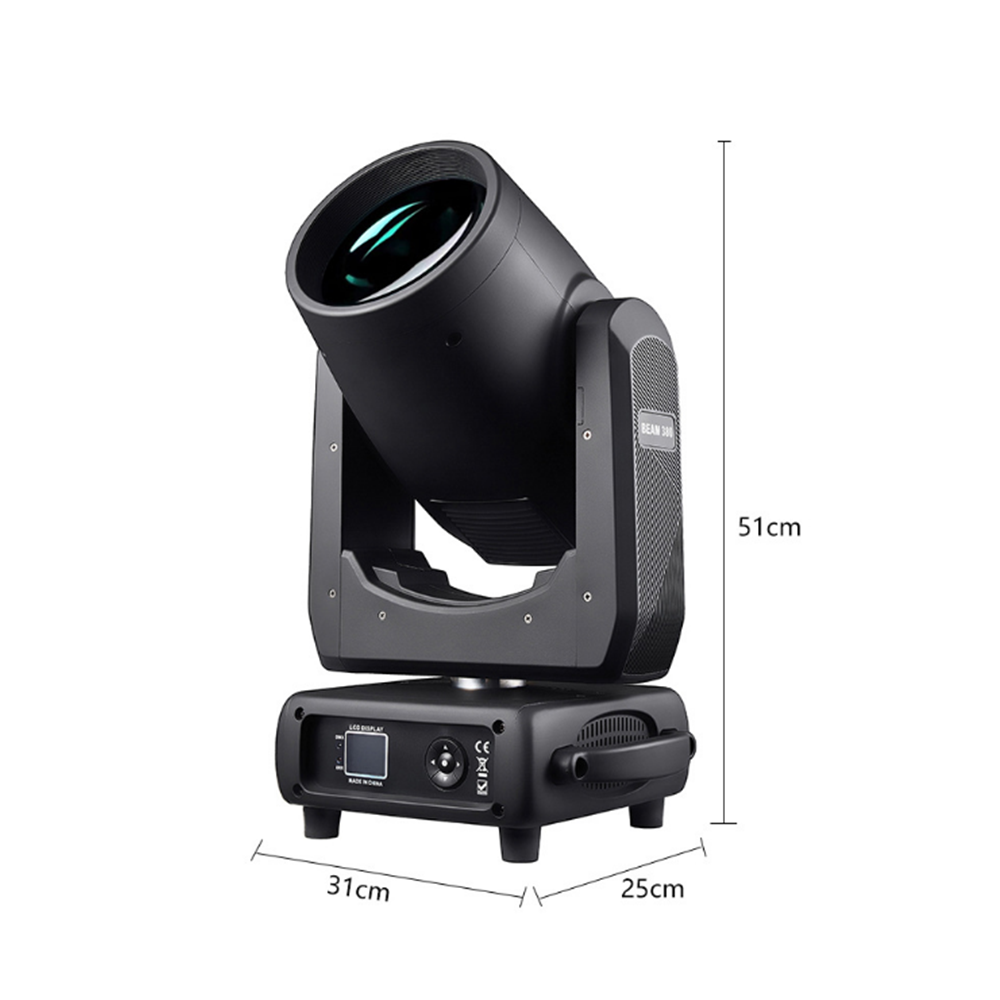

  Packaging dimensions: 56*38*44cm

  Gross weight: 15kg
