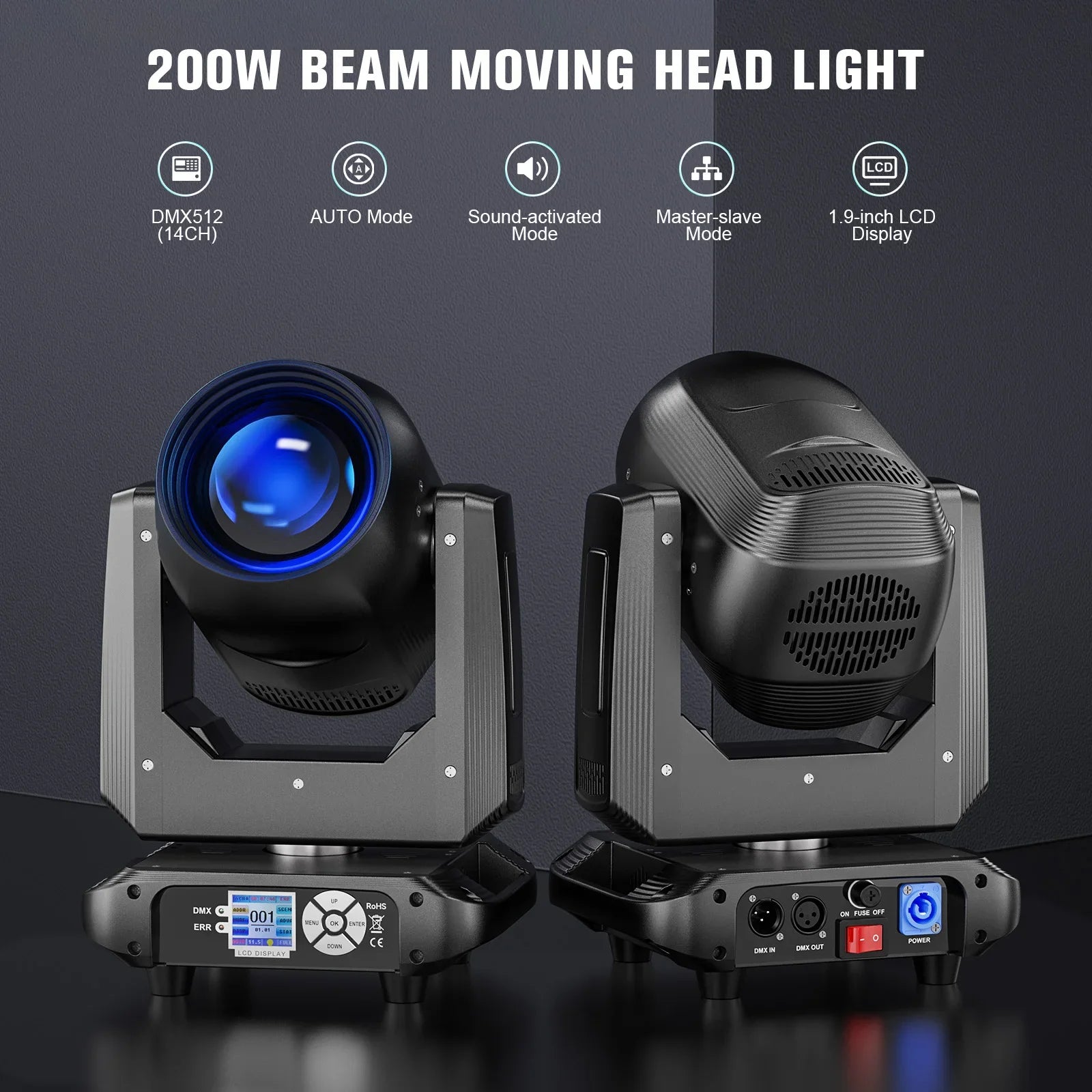

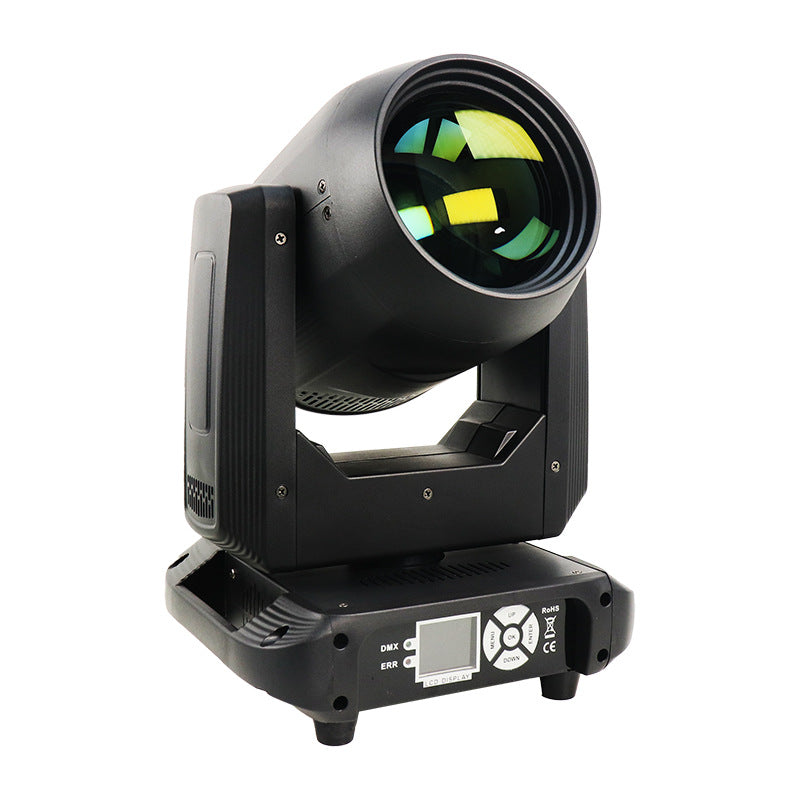

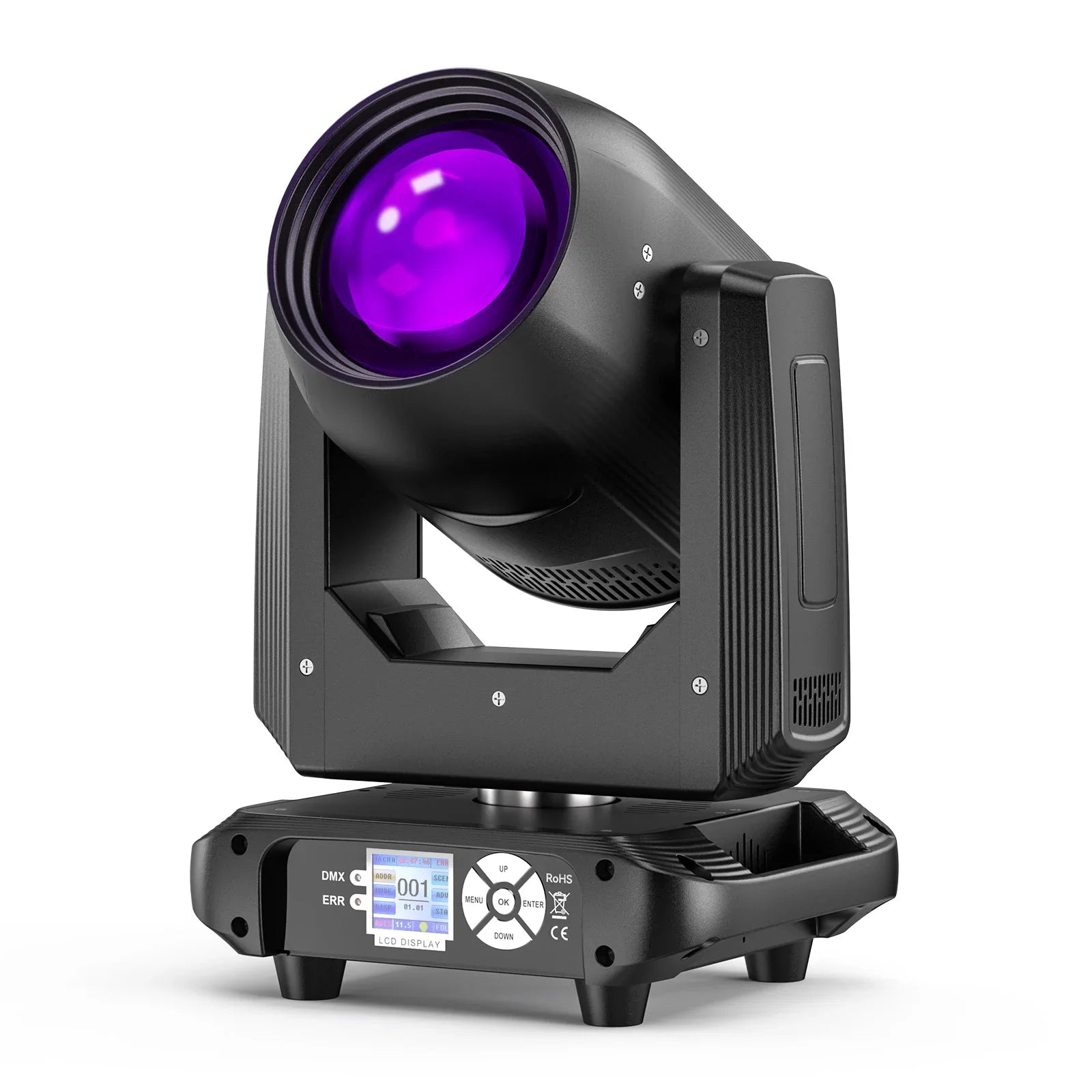

KB-10 200W Zoom Gobo LED Moving Head Beam Light

Specifications:

Shell color: Black

Material: Aluminum construction+plastic shell

Voltage: AC100V-240V 50/60Hz

Rated power: 200W

Light source: 1PCS 150W LED Module

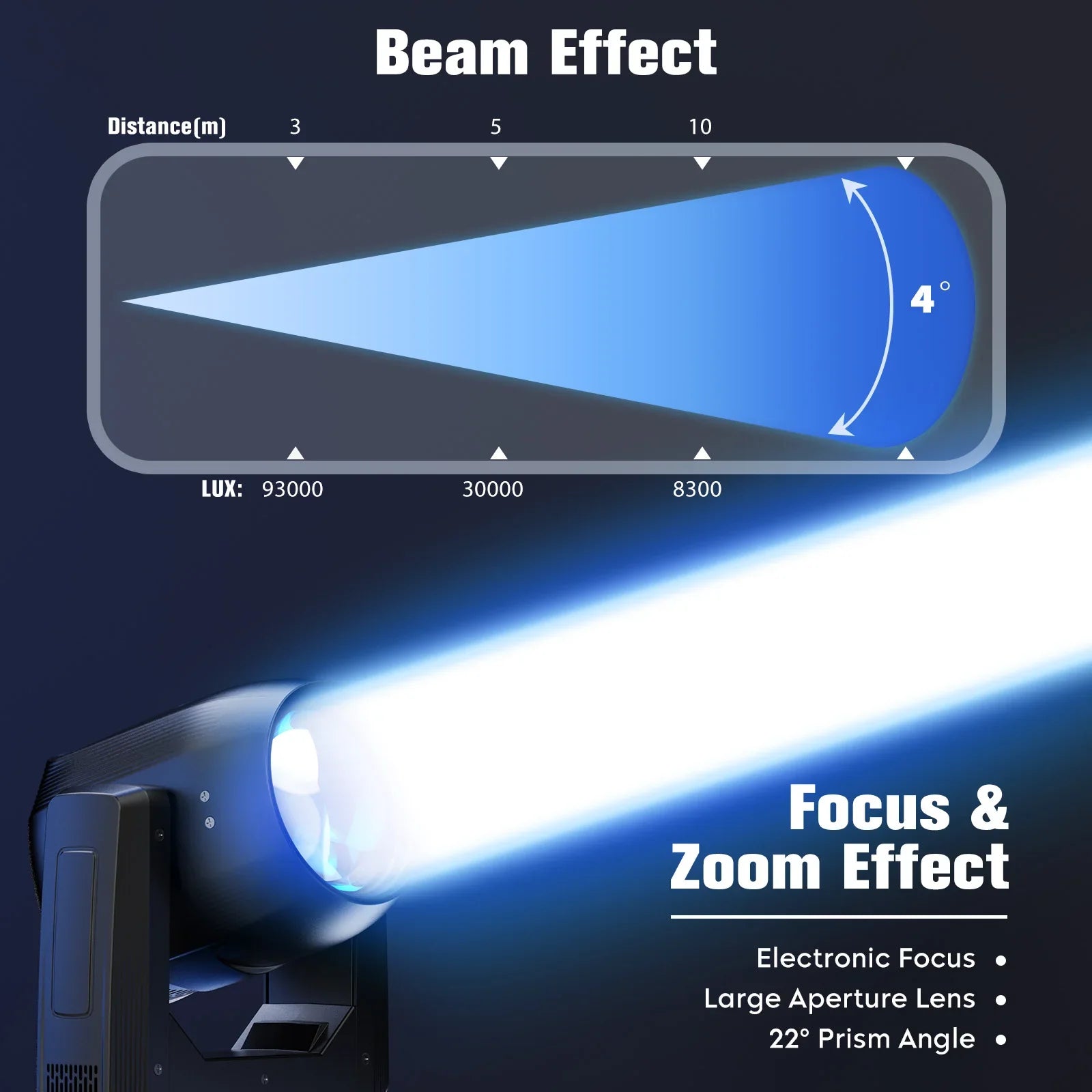

Output Light Angle: 4°

Strobe: 1-20Hz

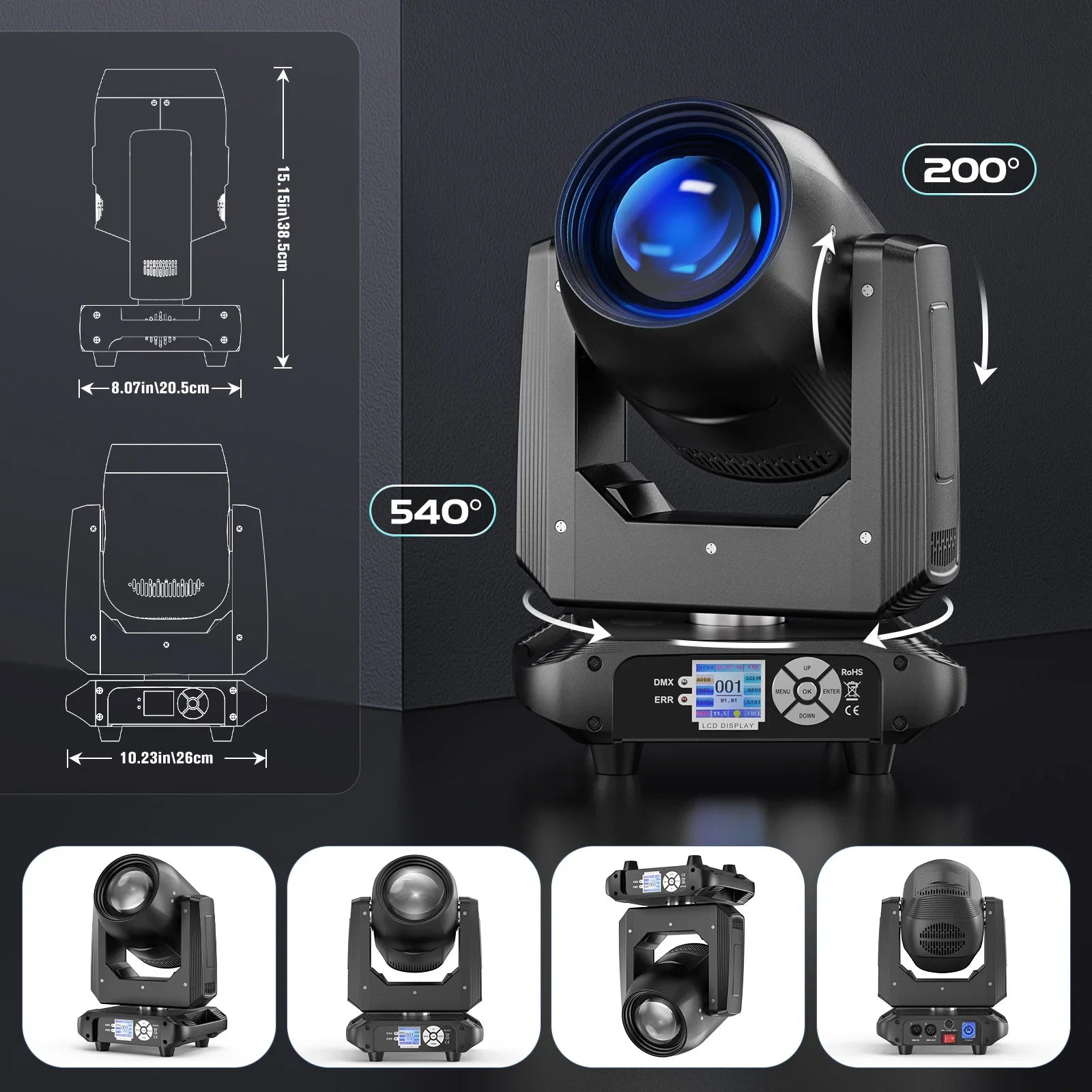

XY-axis:

X-axis:540°

Y-axis: 200°

Wheels: 9+1 color wheel, 13+1 gobo wheel, 18 prism, and rainbow effect

Control Protocol: Standard DMX512 protocol, RDM protocol

LED average lifespan: 50000h

Operation mode: automatic, voice control, DMX,master-slave mode

Lamp output luminous flux: 400000Lux@1M

Dimming curve: 0-100% linear dimming

Control channel: 14CH

Data Connection: 3-pole XLR input/output

Display: LCD display

Protection grade: IP20

Working environment: -20℃-40℃

Features:

• High-Intensity 150W LED Output: Experience brilliant and powerful beams with the integrated 150W LED module. It supports smooth 0-100% linear dimming for perfect light control and offers superior energy efficiency and a long operational life.

• Versatile Creative Effects: Unleash your creativity with a comprehensive suite of effects. The fixture includes a 9+1 color wheel, a 13+1 rotating gobo wheel, an 18-facet prism, and a vibrant rainbow effect. Combine these to produce dynamic half-color, shake, and countless other stunning patterns.

• Multiple Control Modes & Precision Movement: Enjoy flexible control via DMX512, Master/Slave, Sound Active, Auto, and Scene modes. The high-precision motor ensures smooth and silent movement with a 540° horizontal and 200° vertical scan. The electronic focus function guarantees sharp, clear gobos and beams at any throw distance.

• Intelligent Functions for Easy Operation: Features like RDM (Remote Device Management) and an intelligent reset function simplify setup and troubleshooting. The built-in microphone allows for adjustable sound-activated sensitivity. Manually create and store up to 10 custom scenes directly on the fixture for instant recall.

• User-Friendly 1.9" LCD Display: Operation is straightforward with a clear 1.9-inch LCD display that shows all functions and status in both English and Chinese, ensuring easy setup and control for all users.

Ideal for:
Professional stage lighting, nightclubs, DJ performances, wedding receptions, theater production, and event rental companies.

Packing List:

Power Cord *1

Moving Head Light *1

Signal Cable *1

Bracket *1

Bracket Screws *2

Instruction Manual *1
