The Cosmic 8-Series Baldrick8 is a ready-to-run, prebuilt 8-output pixel controller built around the high-performance Baldrick8 board for xLights/FPP displays. It combines 8 xConnect outputs, Mean Well 12V power, a waterproof Ethernet panel connection, and a Boxco P-Series weather-resistant enclosure in a complete finished controller.
Each controller is assembled, wired, labeled, and tested before shipping.
-
8 xConnect pixel outputs — up to 750 RGB pixels per port at 40 FPS
- 6,000 RGB pixel controller output capacity
-
Supports common RGB pixels and supported RGBW pixel types, including UCS2904
- Available in 350 W or 700 W power configurations
-
Single 10/100 Ethernet LAN connection for wired show control
-
3 programmable button/input ports for triggers or supported FPP API actions
- Boxco P-Series weather-resistant enclosure
New to xLights or FPP? Please review our Before You Buy guide before purchasing.
Product Overview
The Cosmic 8-Series turns the Baldrick8 controller board into a complete ready-to-run pixel controller for show builders who want a finished enclosure instead of a bare controller board. It is designed for holiday lighting users, smaller commercial installs, and addressable RGB pixel displays that need a clean, tested 8-output controller.

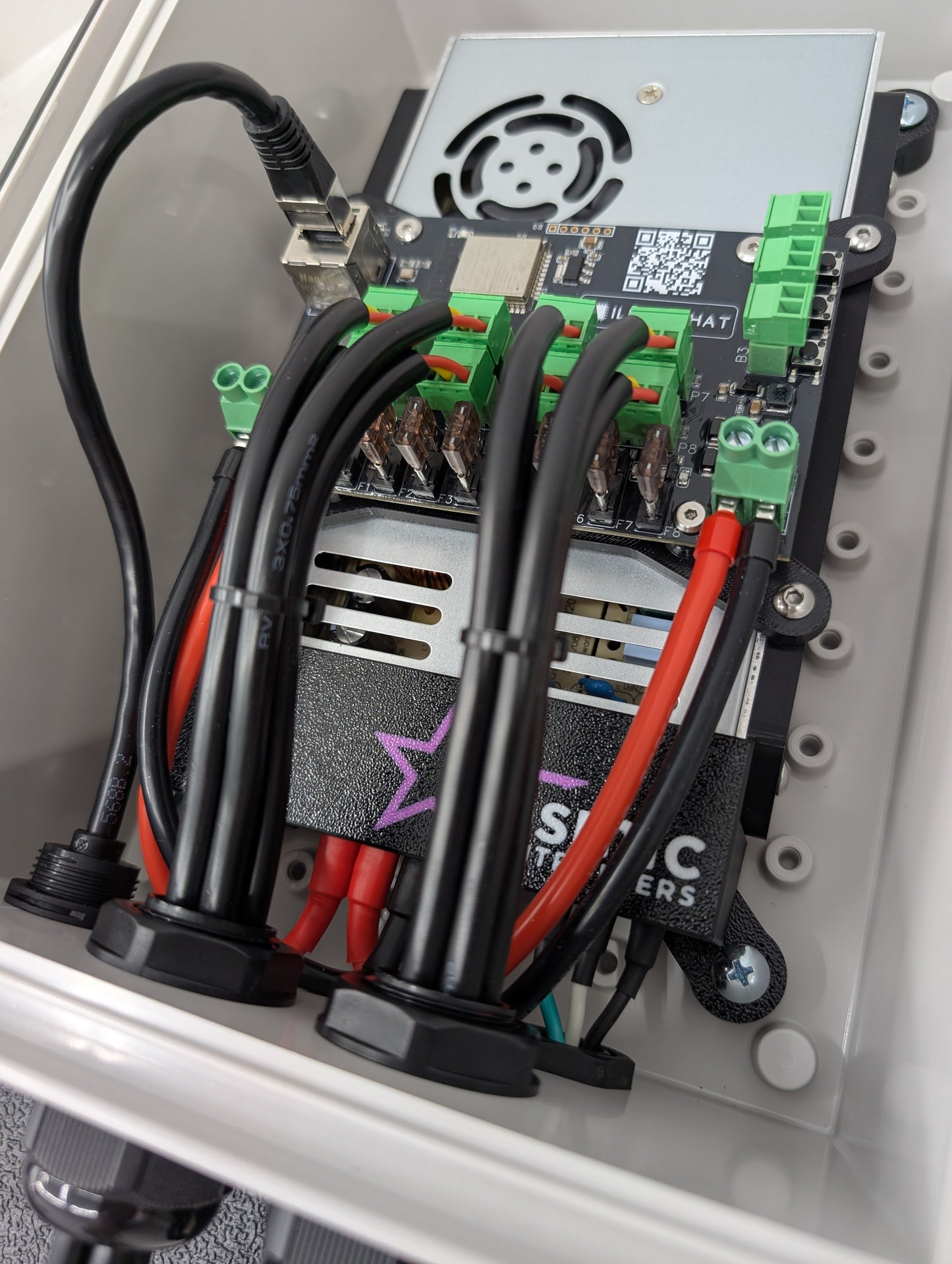

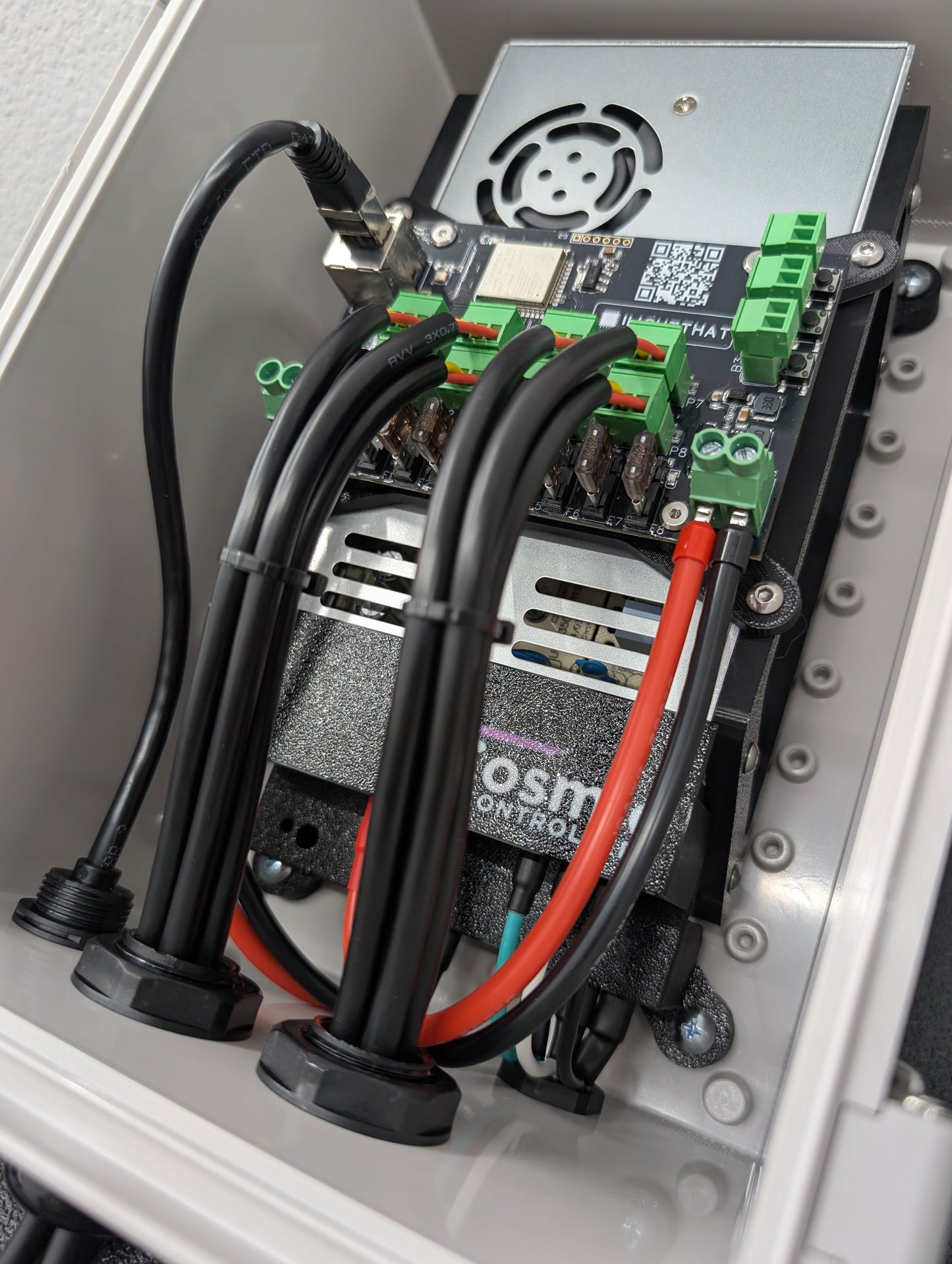

This build includes pre-installed xConnect pigtails, a waterproof Ethernet panel connection, outdoor-rated cable routing, labeled internal wiring, and a tested enclosure layout. Choose the 350 W version for smaller layouts or the 700 W version when additional onboard power capacity is needed.
Key Features
Pixel Output
- 8 pixel outputs
- Up to 750 RGB pixels per port at 40 FPS
- Total controller output capacity: 6,000 RGB pixels
- Compatible with common addressable RGB pixels and supported RGBW pixel types, including UCS2904
- Individually fused outputs using 7.5 A mini blade fuses
Power Management
- Available in 350 W or 700 W configurations

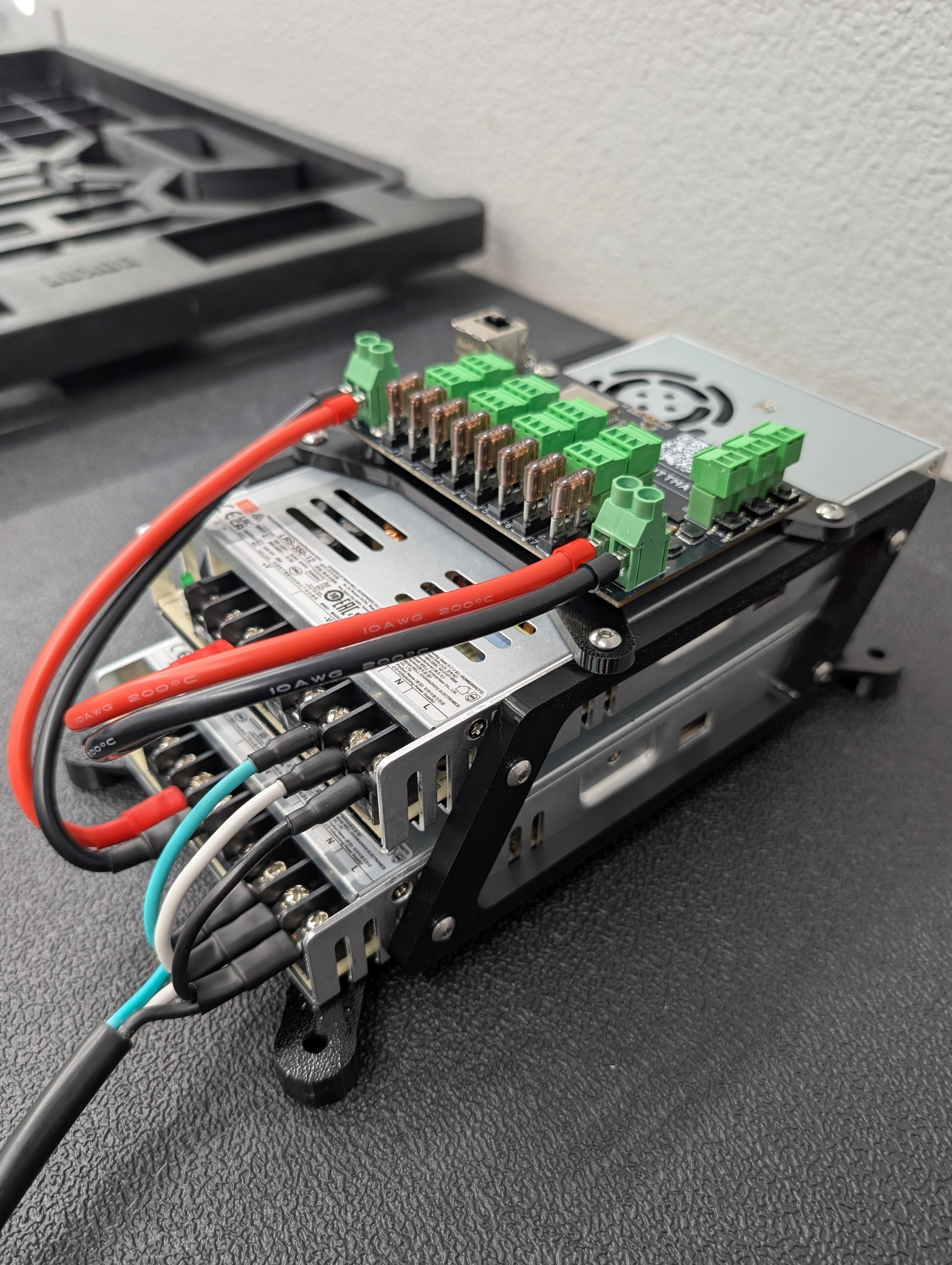

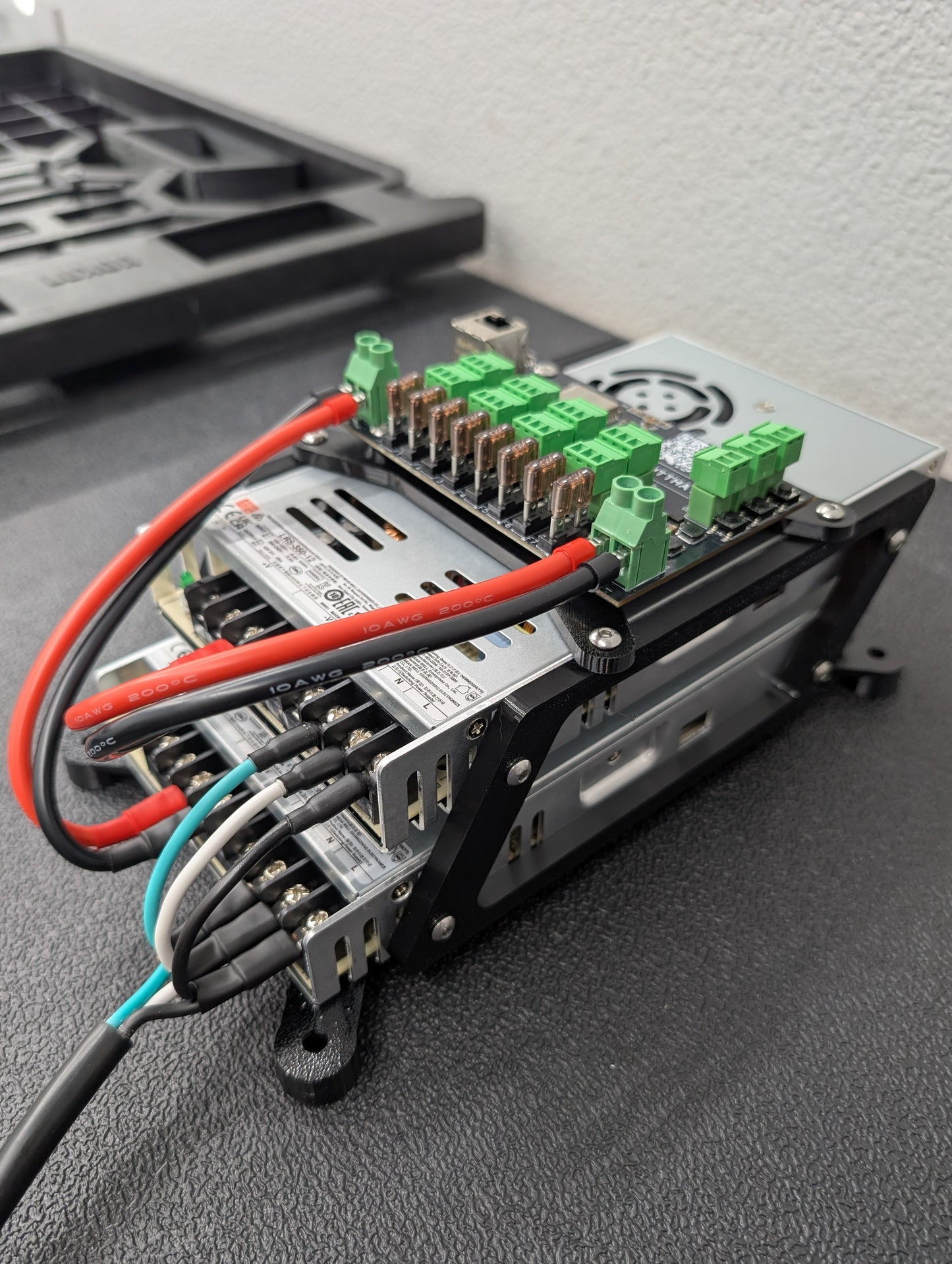

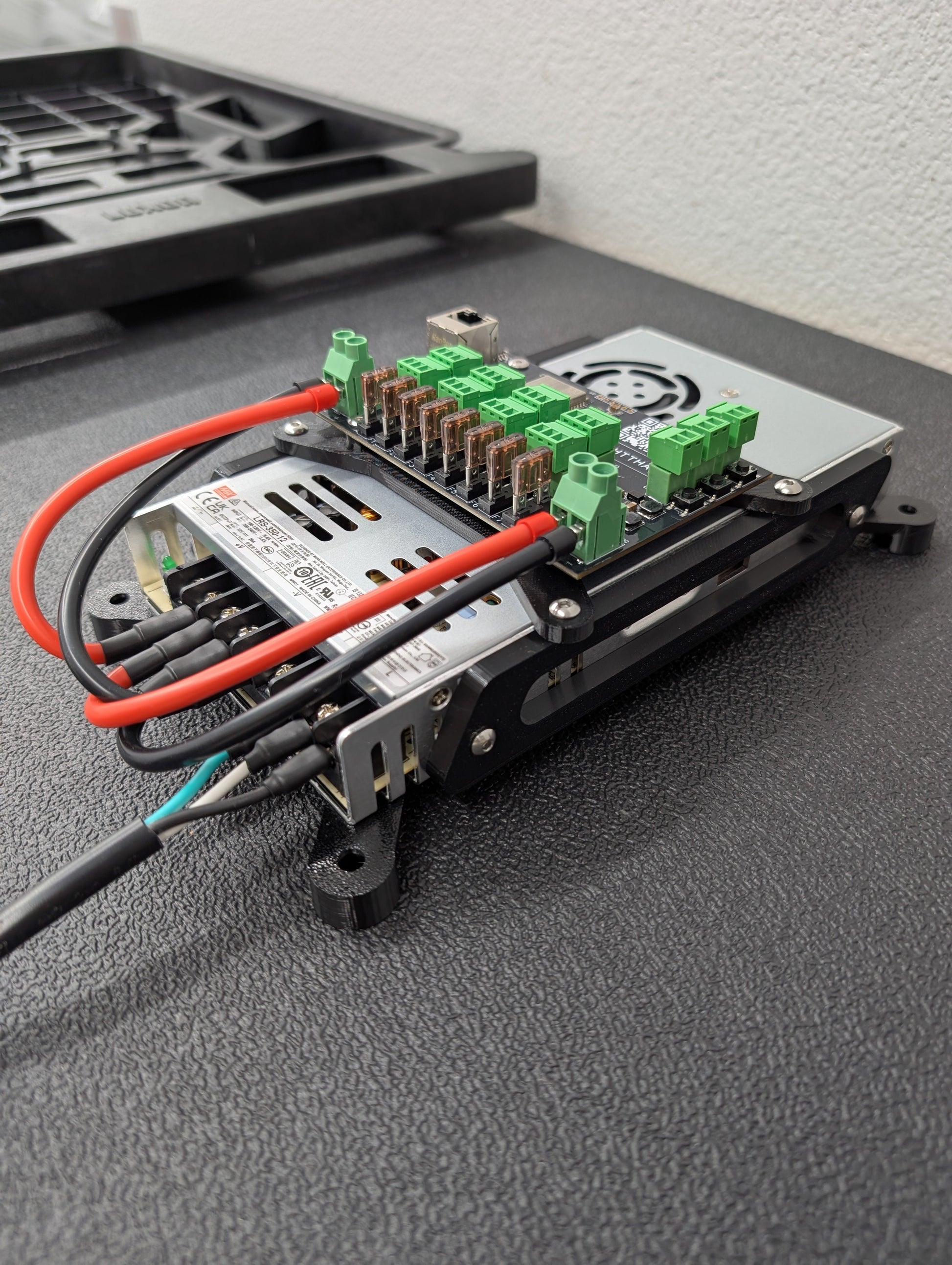

- Single or dual Mean Well LRS-350-12 12V power supply configuration, depending on selected variant
-
10 AWG high-temp silicone wire for main power distribution
- Two Baldrick8 power inputs for output power distribution
Network & Integration
- Single 10/100 Ethernet LAN port for wired network control
- Supports DDP, Art-Net, E1.31, and sACN
-
Push from xLights integration with supported xLights versions
- Receives pixel data over the network from xLights, FPP, or other supported control/playback systems
- Use wired Ethernet for normal show control
Button Inputs & Onboard Controls
- 3 programmable button/input ports
- Useful for buttons, triggers, and supported FPP API actions
- Onboard physical buttons for testing and control functions
- Built-in test modes and effects generator
Enclosure & Build
-

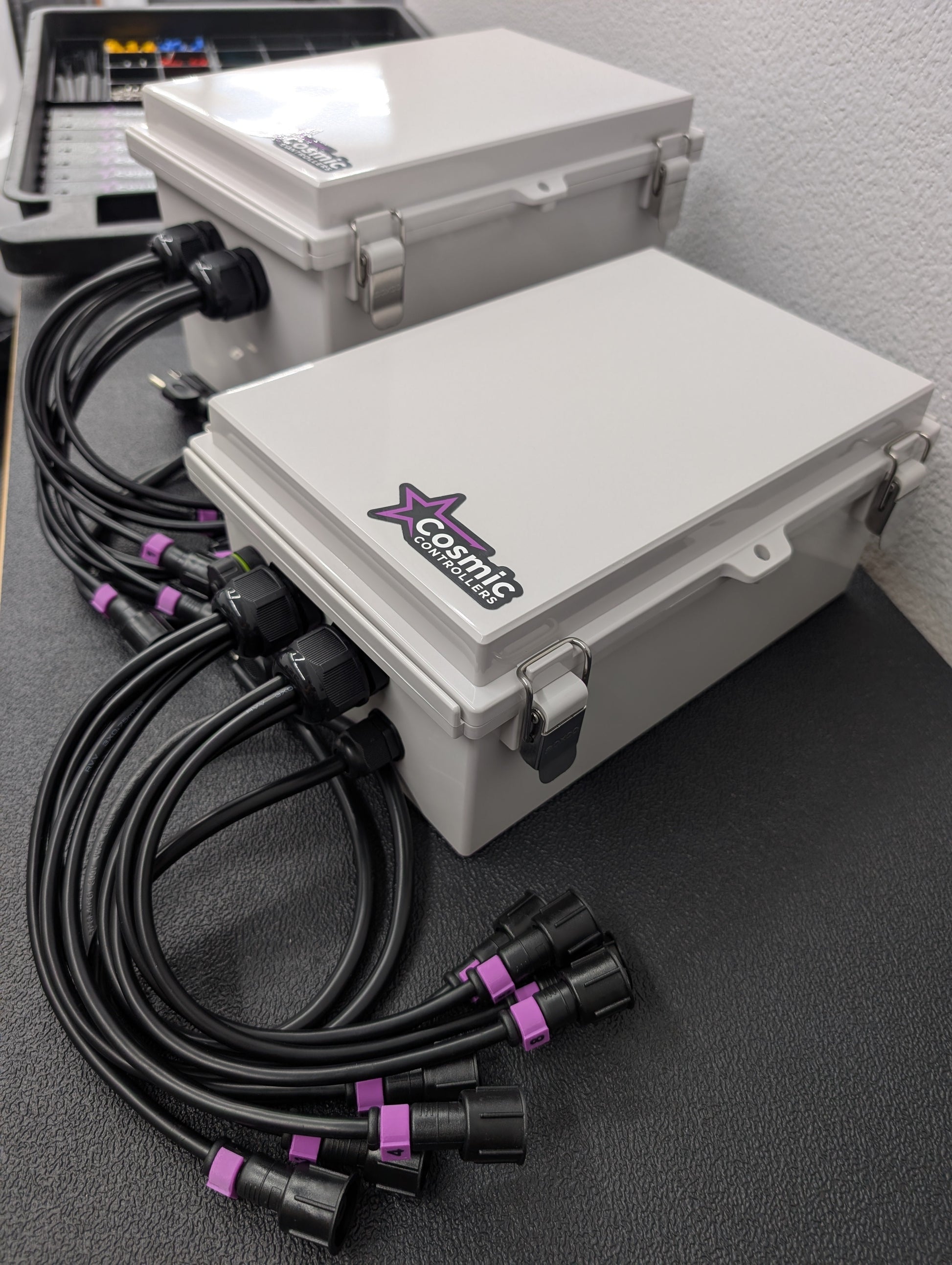

Boxco P-Series weather-resistant enclosure with stainless hardware
-
4-hole IP68 cable glands for clean output routing
- SJTW outdoor-rated power cord
- Pre-wired, labeled, and tested before shipping
Technical Specifications
| Controller Board |
Baldrick8 |
| Controller Type |
Ready-to-run / prebuilt Ethernet pixel controller |
| Pixel Outputs |
8 ports — up to 750 RGB pixels/port @ 40 FPS |
| Total Controller Output Capacity |
6,000 RGB pixels |
| Supported Pixel Types |
Common addressable RGB pixels plus supported RGBW pixel types, including UCS2904 |
| Ethernet |
Single 10/100 LAN port |
| Power Supply |
Single or dual Mean Well LRS-350-12, depending on selected variant |
| Power Options |
350 W or 700 W total installed power supply capacity |
| Inputs |
3 × programmable button/input ports for triggers or supported FPP API actions |
| Protocols |
DDP, Art-Net, E1.31, sACN |
| Software Compatibility |
xLights, FPP, and other supported network lighting control systems |
| Enclosure |
Boxco P-Series weather-resistant enclosure |
| Connectors |
xConnect standard; Ray Wu / HC available by request |
| Warranty |
1-year limited warranty; power supplies covered per manufacturer terms |
Compatibility Notes
- This is a ready-to-run pixel controller build, not a bare controller board.
- Use wired Ethernet for normal show control.
- This is a pixel controller, not an FPP player or show computer.
- The Baldrick8 has a single Ethernet port. Use an external network switch if your layout requires multiple controller network connections.
- Power injection may still be required depending on pixel count, cable length, voltage drop, and display layout.
- If you plan to use RGBW pixels or non-standard pixel types, please confirm the pixel IC/protocol before ordering.
Included Accessories
Recommended Accessories
Warranty & Customization
Every ready-to-run Cosmic controller includes a 1-year limited warranty. See our Warranty Policy for details.
Custom options such as vents, fans, connector changes, or accessory integration may be available. For custom configurations, please contact us before ordering.
