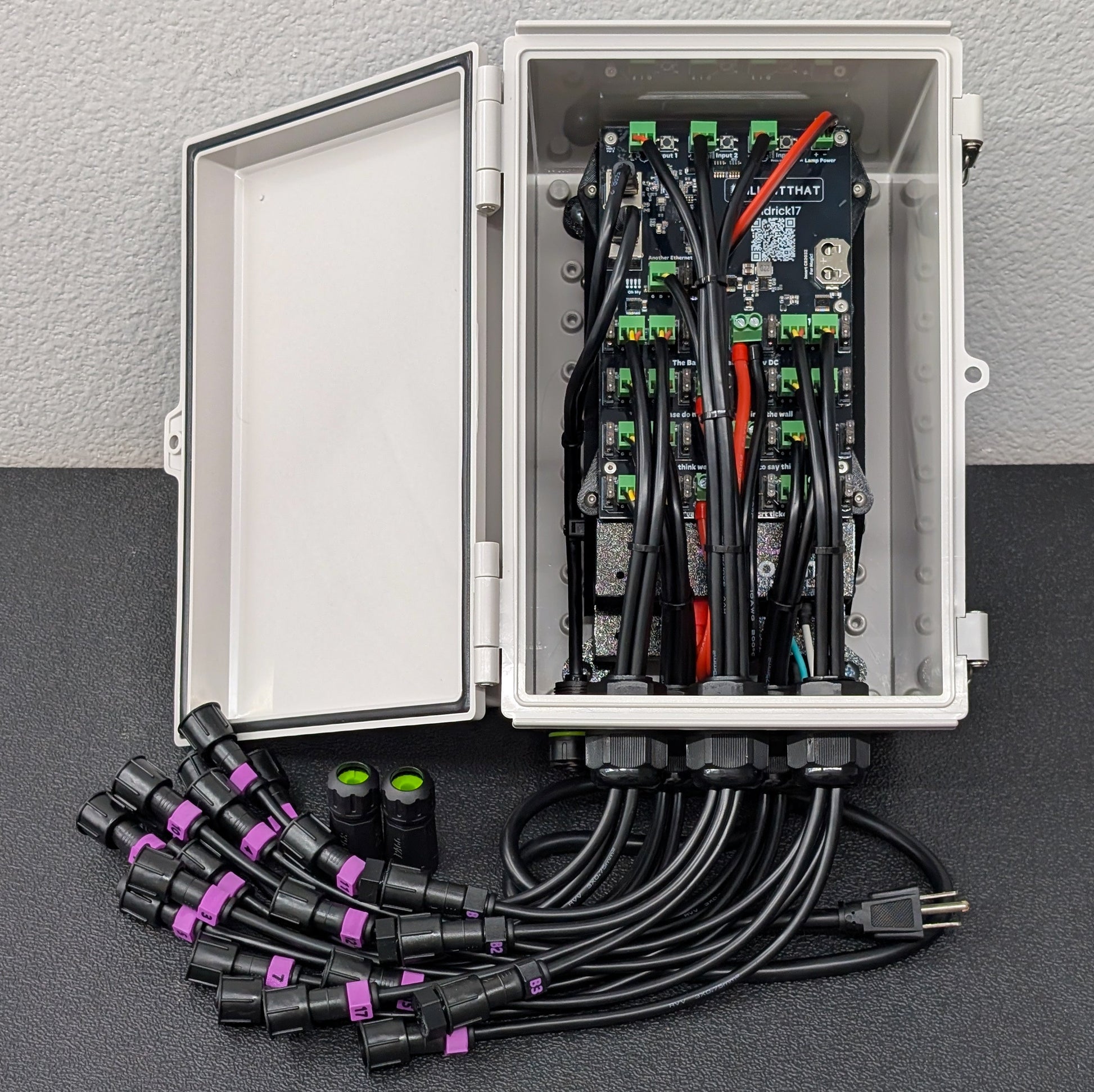

The Cosmic Pro-Series Baldrick17 is a ready-to-run, prebuilt 17-output pixel controller built around the high-performance Baldrick17 board for larger xLights/FPP displays. It combines 17 xConnect outputs, dual Mean Well 12V power supplies, dual Ethernet network in/out, and a Boxco P-Series weather-resistant enclosure in a complete finished controller.
Each controller is assembled, wired, labeled, and tested before shipping.
-
17 xConnect pixel outputs — up to 750 RGB pixels per port at 40 FPS
- 12,750 RGB pixel controller output capacity
-
Supports common RGB pixels and supported RGBW pixel types, including UCS2904
-
Dual Mean Well LRS-350-12 power supplies — 700 W total
-
Dual 10/100 Ethernet network in/out for show network connection and daisy-chain setups
-
3 Turniput inputs for triggers, buttons, lamp control, or supported API actions
- Boxco P-Series weather-resistant enclosure
New to xLights or FPP? Please review our Before You Buy guide before purchasing.
Product Overview

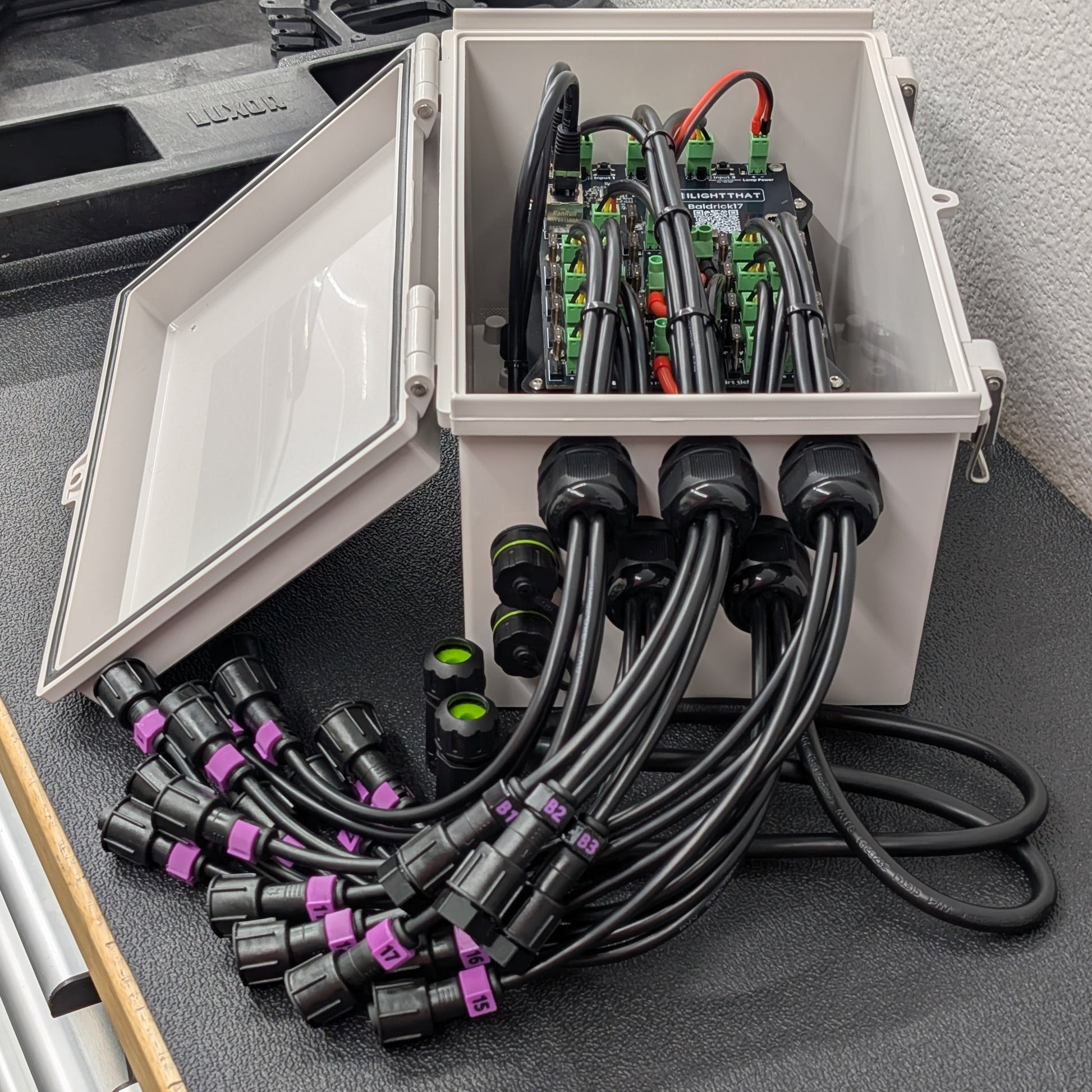

The Cosmic Pro-Series turns the Baldrick17 controller board into a complete ready-to-run pixel controller for show builders who want a finished enclosure instead of a bare controller board. It is designed for experienced holiday lighting users, commercial installers, and larger addressable RGB pixel displays.

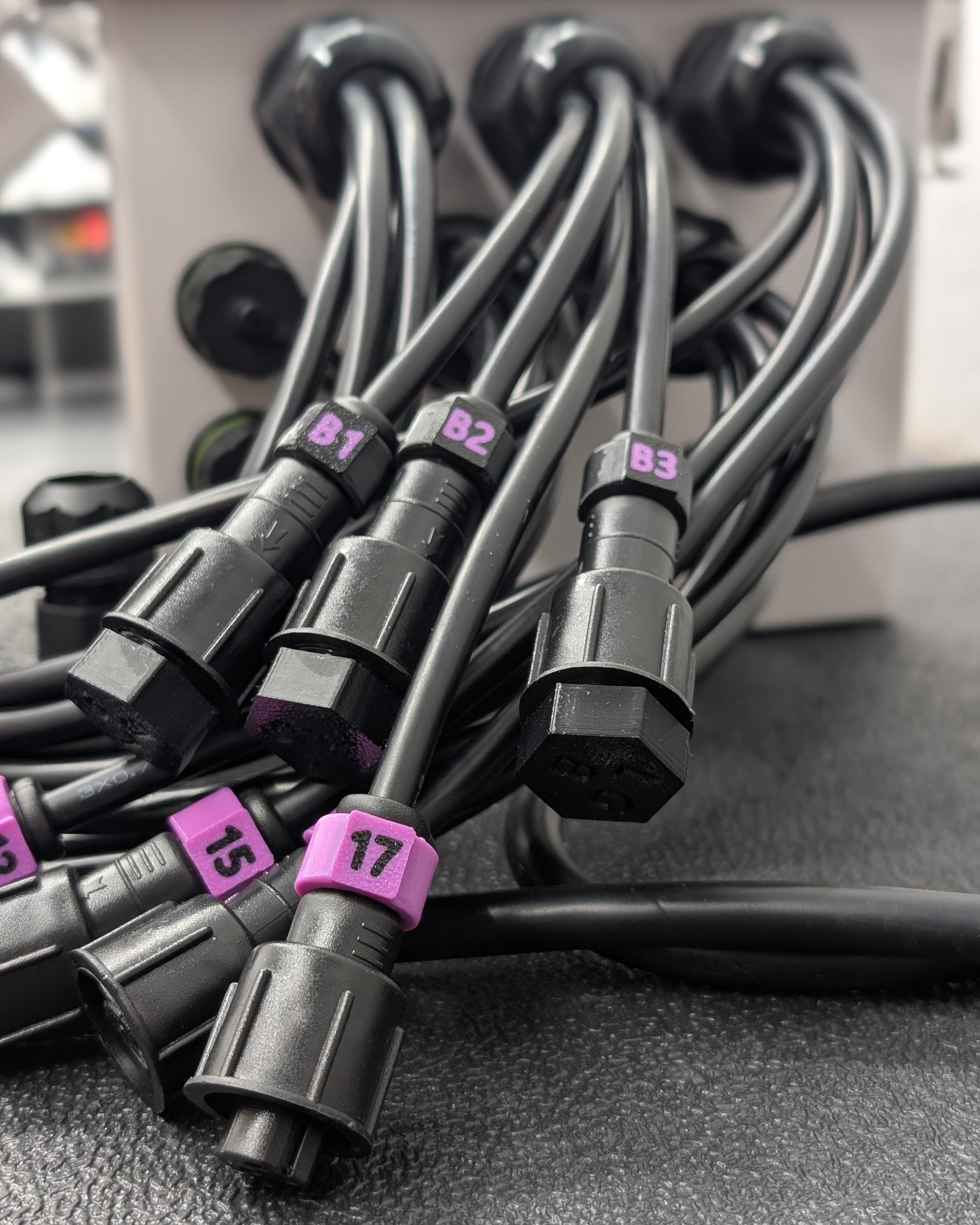

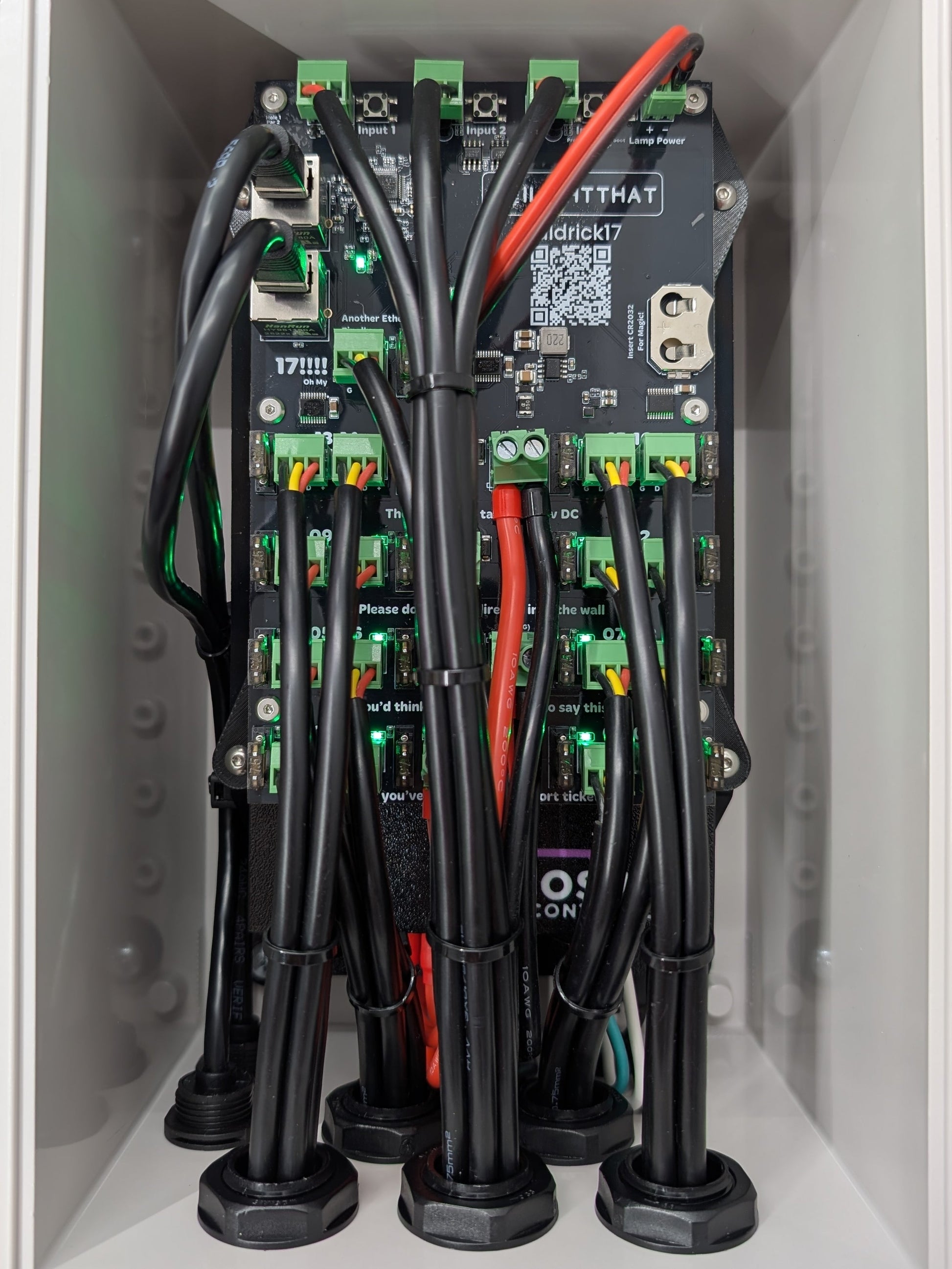

This build includes pre-installed xConnect pigtails, waterproof Ethernet panel connections, outdoor-rated cable routing, labeled internal wiring, and a tested enclosure layout designed for larger pixel displays.
Key Features
Pixel Output
- 17 pixel outputs
- Up to 750 RGB pixels per port at 40 FPS
- Total controller output capacity: 12,750 RGB pixels
- Compatible with common addressable RGB pixels and supported RGBW pixel types, including UCS2904
- Individually fused outputs using 7.5 A mini blade fuses
Power Management

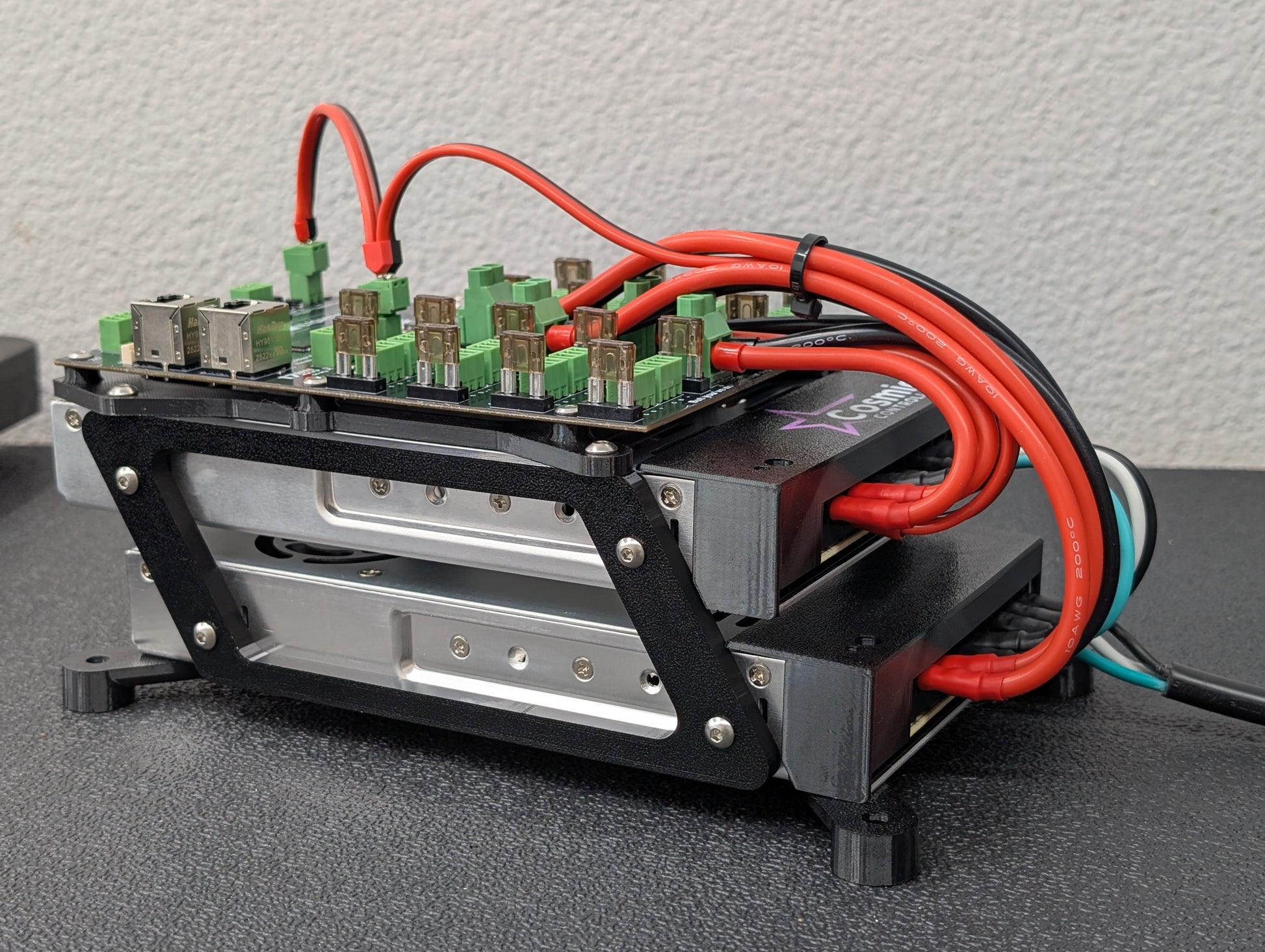

- Dual Mean Well LRS-350-12 12V power supplies
- 700 W total installed power supply capacity
-
10 AWG high-temp silicone wire for main power distribution
- Baldrick17 power banks arranged 4 + 4 + 4 + 4 + 1
Network & Integration
- Dual 10/100 Ethernet ports for network in/out connections
- Supports DDP, Art-Net, E1.31, and sACN
-
Push from xLights integration with supported xLights versions
- Receives pixel data over the network from xLights, FPP, or other supported control/playback systems
- Use wired Ethernet for normal show control
Turniput Inputs & Onboard Controls
- 3 programmable Turniput ports
- Useful for buttons, triggers, lamp control, and supported API actions
- Onboard physical buttons for testing and reset functions
- QR code access to Baldrick documentation
Add Interactive Control
The Baldrick17 includes Turniput inputs for real-world triggers. Pair it with Cosmic Launch Control™ to create an interactive show trigger system.
Bundle & Save: Save $25 when purchased together. Discount applies automatically at checkout.
Enclosure & Build
-
Boxco P-Series weather-resistant enclosure with stainless steel hardware
-

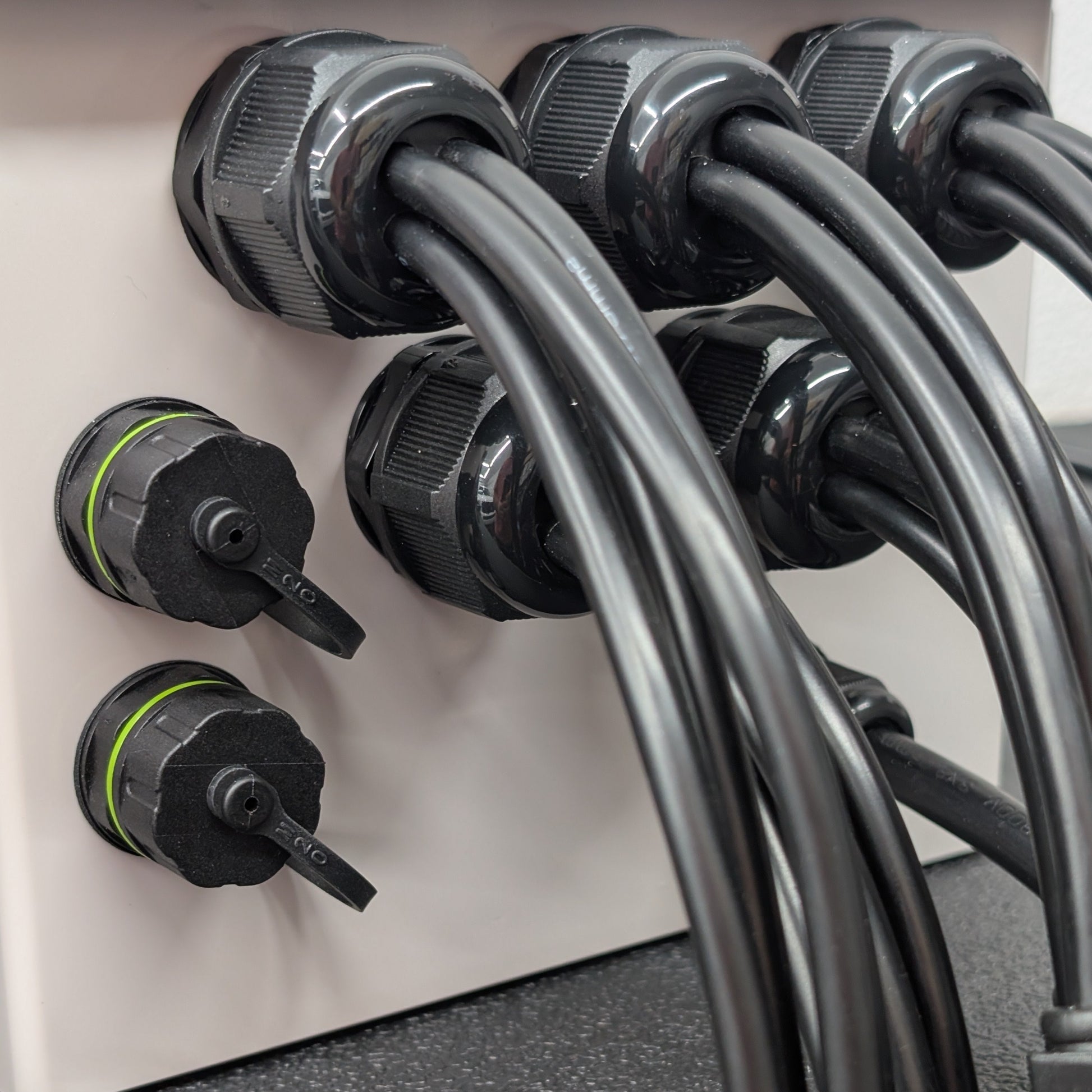

4-hole IP68 cable glands for clean output routing
- SJTW outdoor-rated power cords
- Pre-wired, labeled, and tested before shipping
Technical Specifications
| Controller Board |
Baldrick17 |
| Controller Type |
Ready-to-run / prebuilt Ethernet pixel controller |
| Pixel Outputs |
17 ports — up to 750 RGB pixels/port @ 40 FPS |
| Total Controller Output Capacity |
12,750 RGB pixels |
| Supported Pixel Types |
Common addressable RGB pixels plus supported RGBW pixel types, including UCS2904 |
| Ethernet |
Dual 10/100 LAN ports, network in/out |
| Power Supply |
Dual Mean Well LRS-350-12, 700 W total |
| Power Banks |
4 + 4 + 4 + 4 + 1 output bank layout |
| Inputs |
3 × Turniput ports for triggers, buttons, lamp control, or supported API actions |
| Protocols |
DDP, Art-Net, E1.31, sACN |
| Software Compatibility |
xLights, FPP, and other supported network lighting control systems |
| Enclosure |
Boxco P-Series weather-resistant enclosure |
| Connectors |
xConnect standard; Ray Wu / HC available by request |
| Warranty |
1-year limited warranty; power supplies covered per manufacturer terms |
Compatibility Notes
- This is a ready-to-run pixel controller build, not a bare controller board.
- Use wired Ethernet for normal show control.
- This is a pixel controller, not an FPP player or show computer.
- Power injection may still be required depending on pixel count, cable length, voltage drop, and display layout.
- If you plan to use RGBW pixels or non-standard pixel types, please confirm the pixel IC/protocol before ordering.
Included Accessories
Recommended Accessories
Warranty & Customization
Every ready-to-run Cosmic controller includes a 1-year limited warranty. See our Warranty Policy for details.
Custom options such as vents, fans, connector changes, or accessory integration may be available. For custom configurations, please contact us before ordering.
